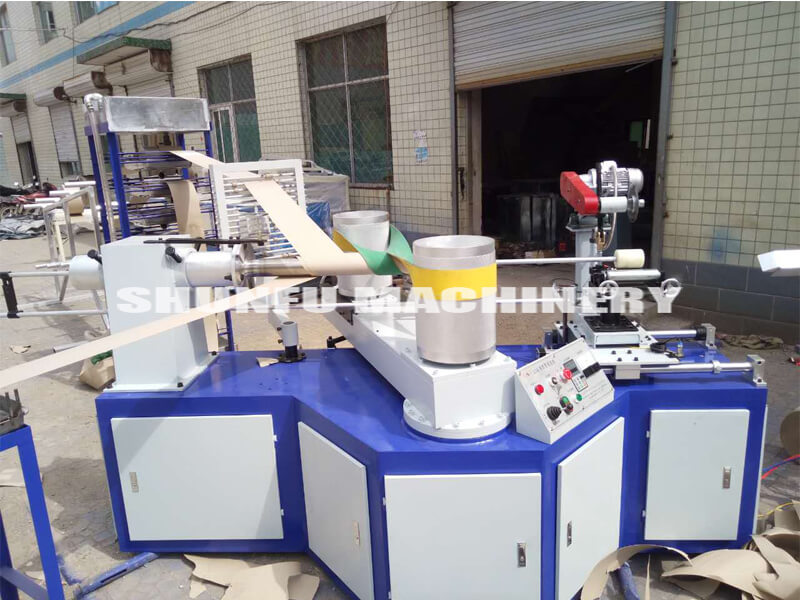

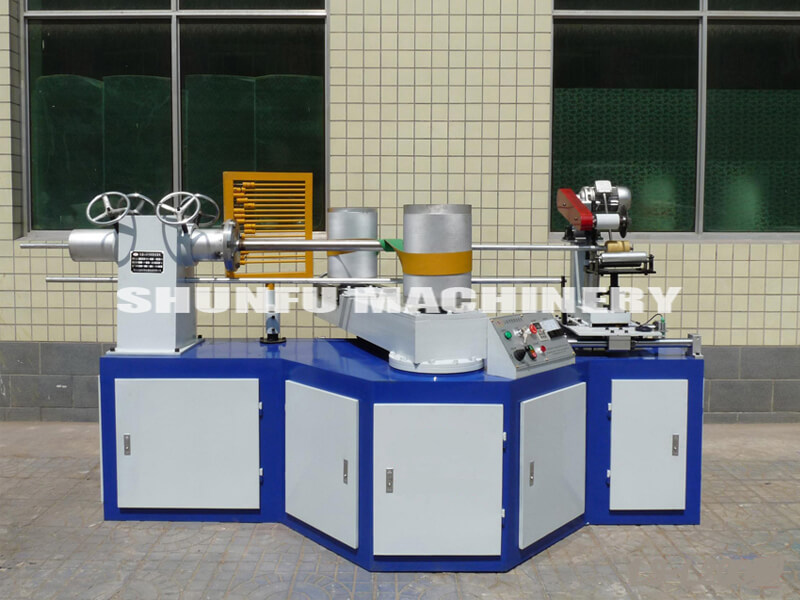

2 Heads CNC Spiral Paper Tube Machine
- Winding head:2 heads single belt
- Winding diameter:20-200mm
- Reel speed:3-16m/min
- Paper roll:3-16 layers
- Wall thickness:1-8mm
We are here to help:Easy ways to get the answers you need.
- Culture paper machine
-
- 2400mm Type Fourdrinier Multi-Dryer Newspaper Machine
- 2800mm Daily Capacity 40 Tons Fourdriner Culture Paper Machine
- 1575 Fourdrinier Cultural Paper Machine
- 1092 Type Capacity 3-4tons Writing Paper Machine
- 6-8tons culture paper machine
- 1092mm Fourdrinier Paper Making Machine
- 1092 Type Capacity 5tons Culture Paper Machine
- 787mm Type Culture Paper Machine
- 1575mm type culture paper making machine
- Specialty paper machine
-
- 1600A Model Kraft Paper Slitting Machine
- 1760mm Multi-Dryer Five Cylinder Mould Grey Cardboard Machine
- 1092mm Multi-Dryer Five Cylinder Mould Grey Cardboard Machine
- 2100mm Multi-Dryer Five Cylinder Mould Paperboard Machine
- 4 Heads CNC Spiral Paper Tube Machine
- 2 Heads CNC Spiral Paper Tube Machine
- Capacity 5-8 Per Day Paperboard Machine
Describe
♦ Technical Parameter
♦ Features
1- Automatic cutting and automatic cutting.
| Transmission mode | Automatic tensioning and anti off type chain transmission |
| Coating method | Double side automatic glue |
| Cutting mothod | Single round knife synchronous automatic cutting |
| Host size | 2600*1700*1600 |
| Control way | Multi point operation panel |
| Worker | 2 people |
| Definite form | Infrared precise fixed length |
| Host rate | WPO 1：30 |
| Speed control | Computer frequency conversion |
| Power | 380V RSTN |
♦ Features
1- Automatic cutting and automatic cutting.
2- Cutting automatic synchronous speed, automatic return.
3- Frequency conversion speed control than ordinary electromagnetic speed adjustable 30-60%
4- On one side or two sides of any glue.
5- Infrared + host automatic transmission to make the length of the cut pipe more accurate (error 1-2mm)

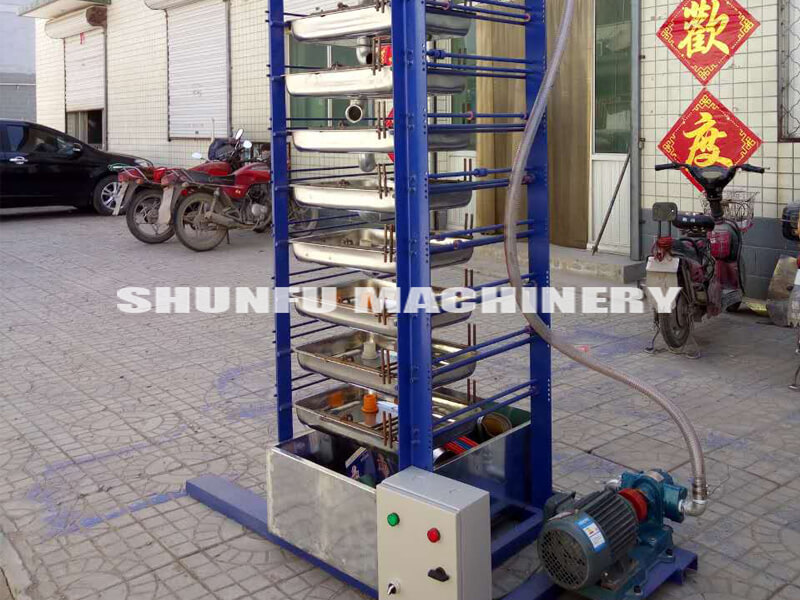

6- Can increase the electric heating drying device.
7- Single round knife cutting, the cut is more smooth, more stable performance.
