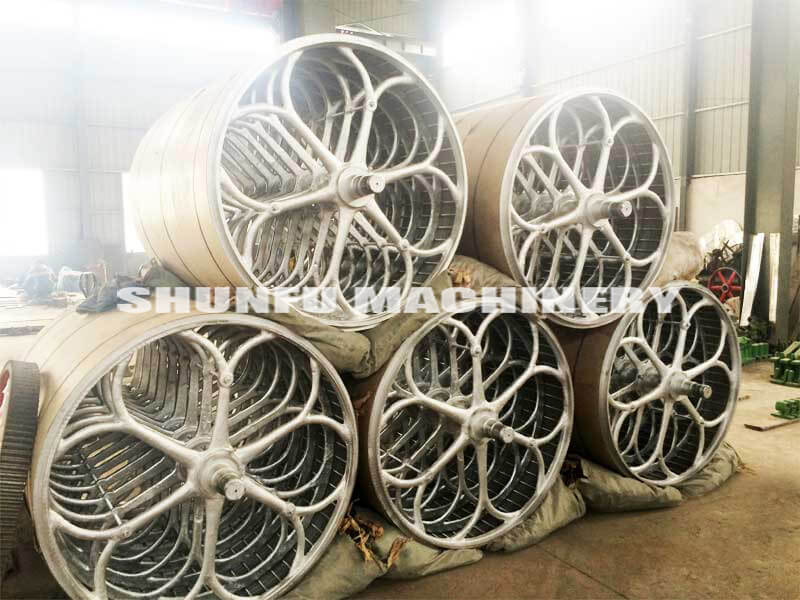

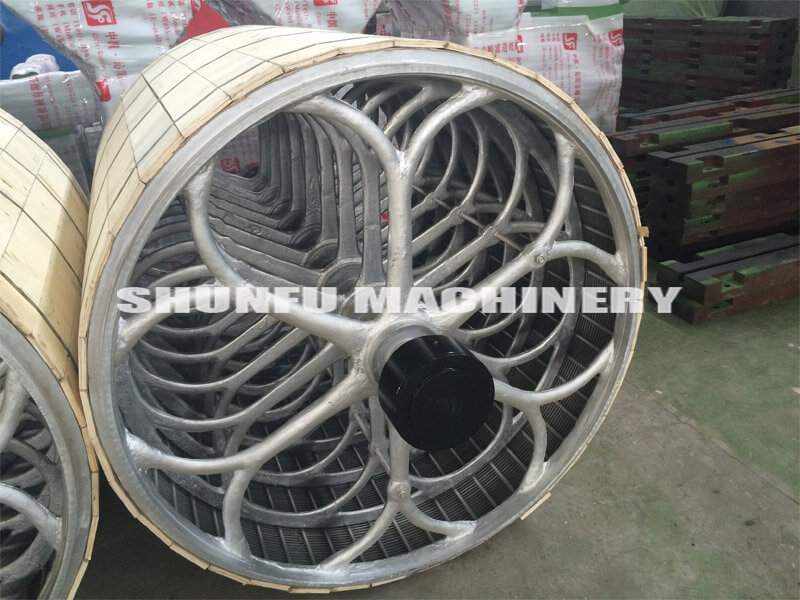

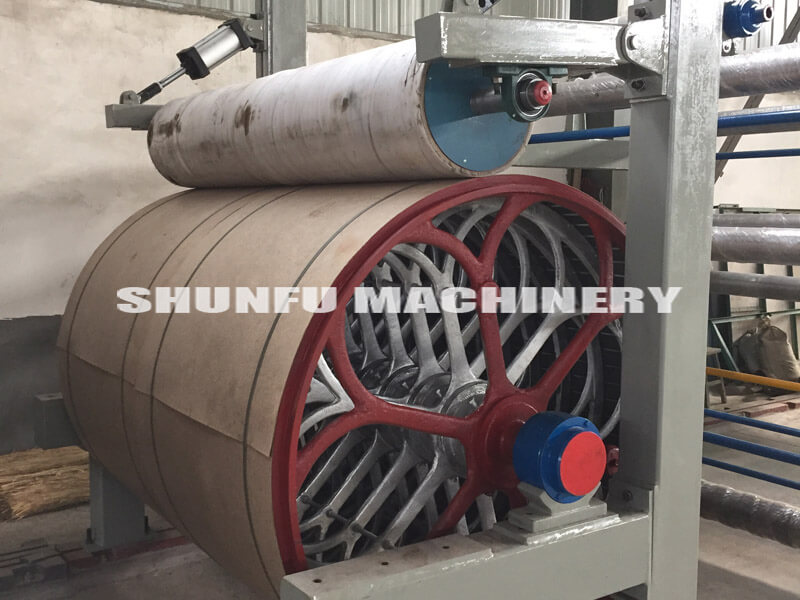

Cage
- Product type:Cylinder moulds in paper making machine
- Life time:10-30 years
- Usage:Improve the quality of paper
- Material:Plastic, Stainless steel
- Machine parts:Cylinder mould
We are here to help:Easy ways to get the answers you need.
- Culture paper machine
-
- 2400mm Type Fourdrinier Multi-Dryer Newspaper Machine
- 2800mm Daily Capacity 40 Tons Fourdriner Culture Paper Machine
- 1575 Fourdrinier Cultural Paper Machine
- 1092 Type Capacity 3-4tons Writing Paper Machine
- 6-8tons culture paper machine
- 1092mm Fourdrinier Paper Making Machine
- 1092 Type Capacity 5tons Culture Paper Machine
- 787mm Type Culture Paper Machine
- 1575mm type culture paper making machine
- Specialty paper machine
-
- 1600A Model Kraft Paper Slitting Machine
- 1760mm Multi-Dryer Five Cylinder Mould Grey Cardboard Machine
- 1092mm Multi-Dryer Five Cylinder Mould Grey Cardboard Machine
- 2100mm Multi-Dryer Five Cylinder Mould Paperboard Machine
- 4 Heads CNC Spiral Paper Tube Machine
- 2 Heads CNC Spiral Paper Tube Machine
- Capacity 5-8 Per Day Paperboard Machine
Describe
◆ Technical Parameters
| Main technical parameters | |
| Diameter | 1500mm |
| Diameter of SS stick | 12mm |
| Face length | 2000mm |
| Qty of SS stick | 80 |
| Qty of middle supportchip | 14 pcs |
| Thickness of SS strip | 15mm |
| Diameter of axis | 180mm |
| Stainless steel winding scrip | δ= 1.5 ×25mm |
| Dimension | 1.6mx1.6mx2.4m |
◆ Main Features
1. Increase the area and the rate of water filtration, increase production
2. Improve the quality of paper, including the degree of uniformity, weight, aspect ratio
3. Reduce the copper net, cloth etc. consumption and maintenance cost
4. To strengthen the integrity of the equipment and anti-corrosion performance, durable Three has been developed and produced with a wear film, around the chip and the of oblique chip network.
