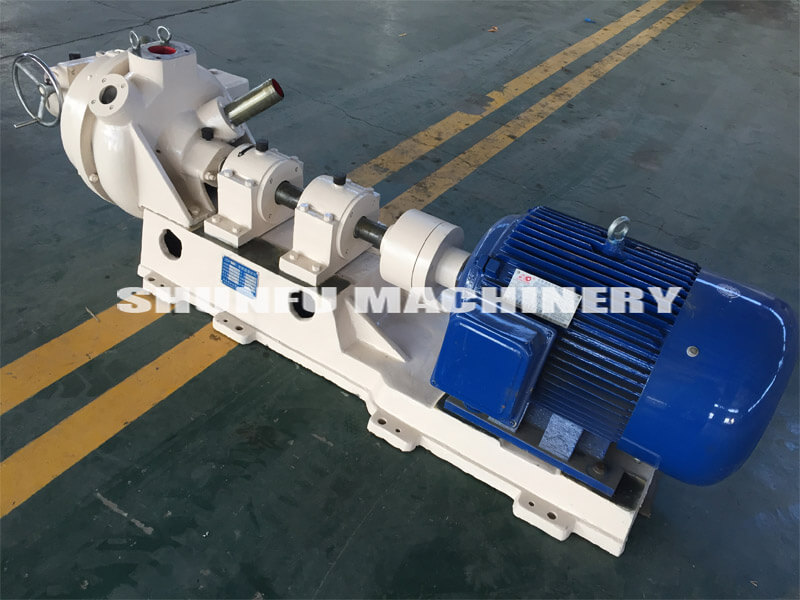

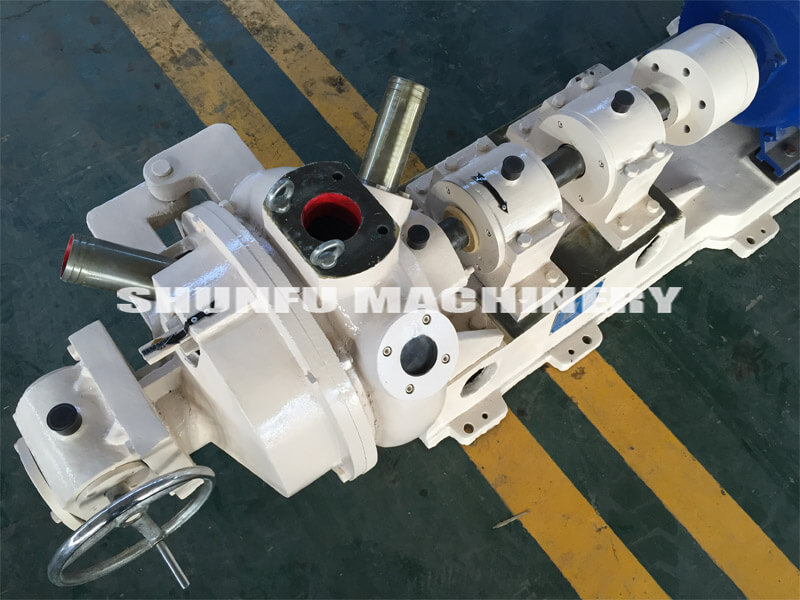

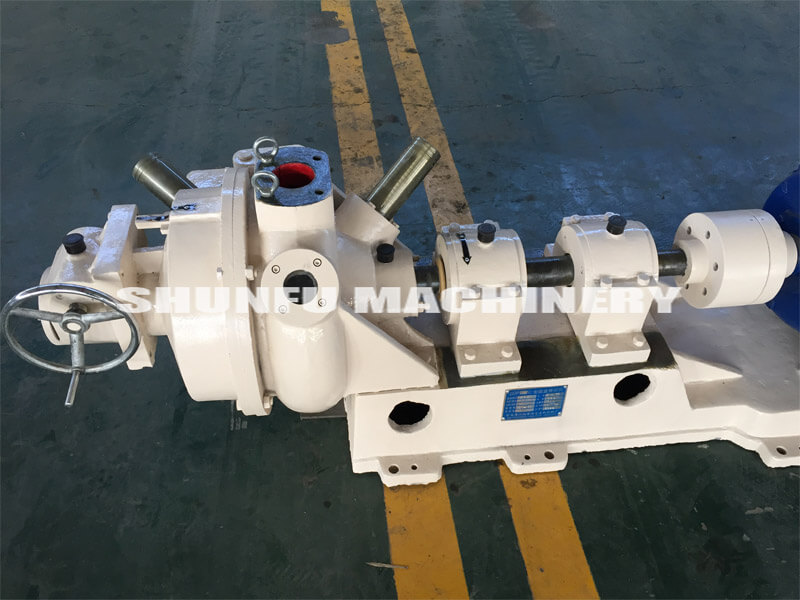

Double Disc Refiner

  • Specification:Big cone degree,refined
  • Wimble degree:60
  • Capacity:6-800tpd
  • Power:7-15kw
  • Dimension(L*W*H):Depends on model and configuration

We are here to help:Easy ways to get the answers you need.

Send EmailChat Now

PRODUCT LIST

Toilet paper machine
Toilet paper processing machinery
Culture paper machine
Kraft/Corrugated paper machine
Specialty paper machine
Paper completed section
Paper machine supporting machine
Egg tray machine
Pulping equipment

HOT PRODUCT

Describe

◆ Product Description
Material of the machine body is HT250. Main part touch with pulp is made of SUS 304 stainless steel(8mm wall thickness). Material of the disc is high chrome alloy steel, main shaft for 45# quenched and tempered steel, gear coupling for 45# forged steel.Double disc pulp refiner machie struction:double disc pulp refiner consists of the pulping room,a transmission struction,a base,motors and so on.pulping room is fixed on the casing and the movable seat on two fixed disk and mounted on a rotating disk of the two rotating disc,forming two pulping zone.Through replacing different tooth grinding,to meet the various requirements of striking pulp.


◆ Technical Parameter
NO. DATA MODEL
UNIT		 TSP-Φ380 TSP-Φ450
1 DISC DIAMETER mm Φ380 Φ450
2 CAPACITY t/d 6-20 8-40
3 INLET CONSISTENCY % 2-5 2-5
4 INLET PRESSURE Mpa 0.1-0.3 0.1-0.3
5 INLET DIAMETER mm 2-Φ65 2-Φ70
6 OUTLET DIAMETER mm Φ70 Φ100
7 MOTOR KW Y250M-6/37KW Y315M-6/90KW
8 WEITHT Kg 1250 2000
9 OUTSIDE MEASURENMENT mm 2050×1360×650 2784×1360×855
