Centrifugal Screen
- Processing type:Pulp Molding Machine
- Model Number:Various
- Voltage:380v
- Power:15-20kw
- Certification:ISO9001:2008,CE
We are here to help:Easy ways to get the answers you need.
- Culture paper machine
-
- 2400mm Type Fourdrinier Multi-Dryer Newspaper Machine
- 2800mm Daily Capacity 40 Tons Fourdriner Culture Paper Machine
- 1575 Fourdrinier Cultural Paper Machine
- 1092 Type Capacity 3-4tons Writing Paper Machine
- 6-8tons culture paper machine
- 1092mm Fourdrinier Paper Making Machine
- 1092 Type Capacity 5tons Culture Paper Machine
- 787mm Type Culture Paper Machine
- 1575mm type culture paper making machine
- Specialty paper machine
-
- 1600A Model Kraft Paper Slitting Machine
- 1760mm Multi-Dryer Five Cylinder Mould Grey Cardboard Machine
- 1092mm Multi-Dryer Five Cylinder Mould Grey Cardboard Machine
- 2100mm Multi-Dryer Five Cylinder Mould Paperboard Machine
- 4 Heads CNC Spiral Paper Tube Machine
- 2 Heads CNC Spiral Paper Tube Machine
- Capacity 5-8 Per Day Paperboard Machine
Describe

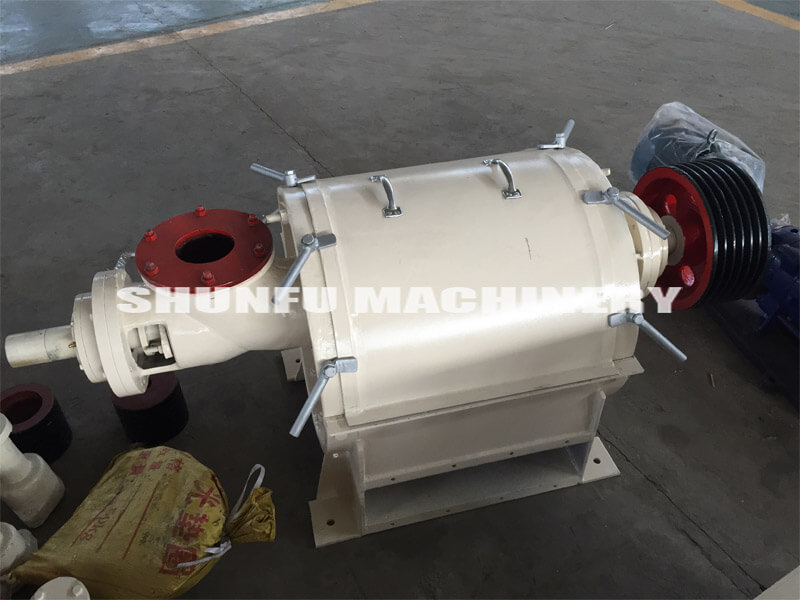

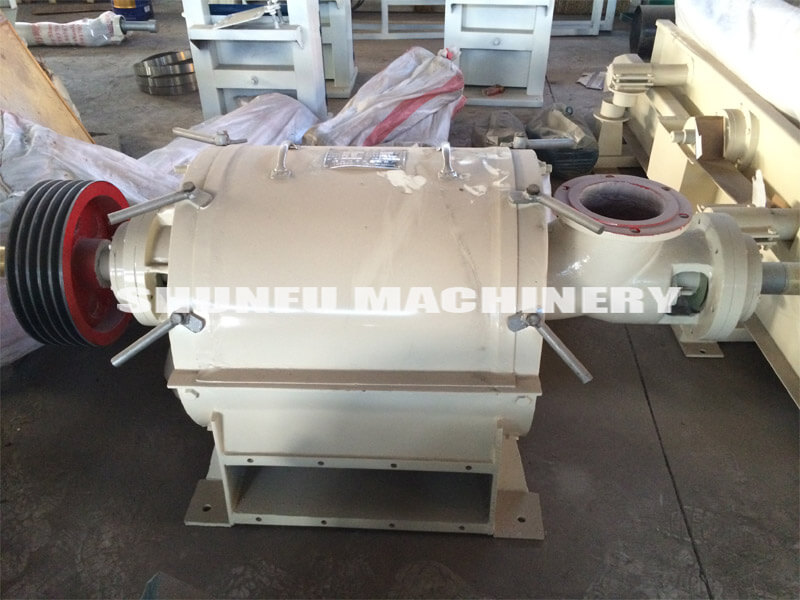

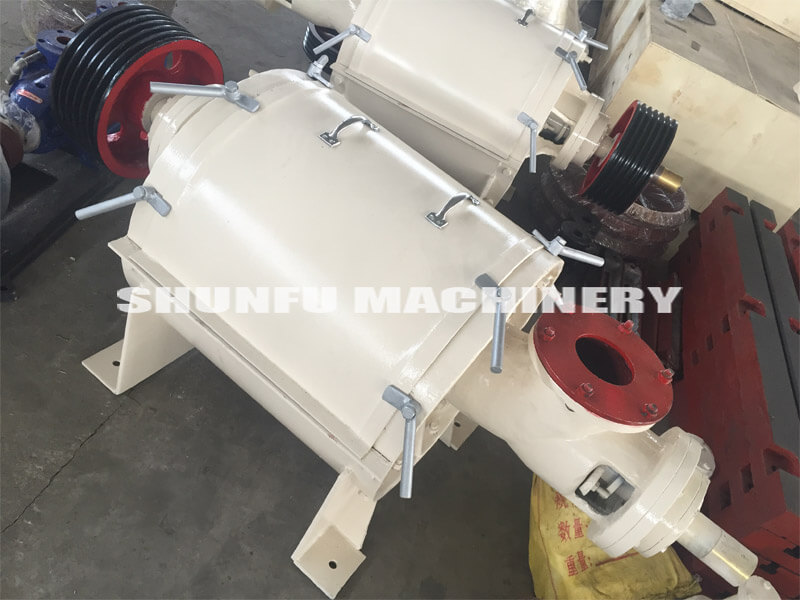

Series centrifugal type pulp screen use for screen coarse thick liquid after removing section and washing to get rid of the part of without steaming, fiber tip and other incidentals. The diameter is small, and the rotational speed is higt. It is fine to form the thick liquid ring. Motive force consumed is low, the floor space is smail, and operate and maintenance is simple.
◆ Specifications
The centrifugal scren, which is the improved quipment of the CX centrifugal screen, can be used in various paper pulp screening and sizing agent accurate selecting, and is the most widely used screen equipment in paper making pulping industry for screening at present.
◆ Centrifugal Screen
|
Model |
ZSL1(F) |
ZSL2(F) |
ZSL3 (F) |
ZSL4(F) |
|
Screen area(Square meters) |
0.5 |
0.9 |
1.6 |
2.4 |
|
Slurry concentration(%) |
0.8-3.0 |
|||
|
Pulp concentration(%) |
0.6-1.5 |
|||
|
Throughput(t/d) |
10-15 |
20-30 |
35-50 |
55-80 |
|
Power of motor(KW) |
7.5/4 |
22/6 |
37/6 |
75/6 |
