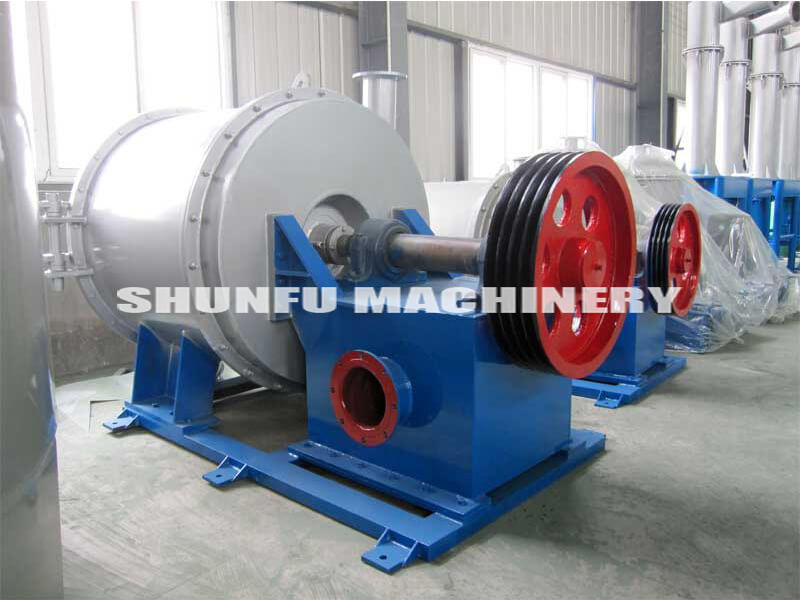

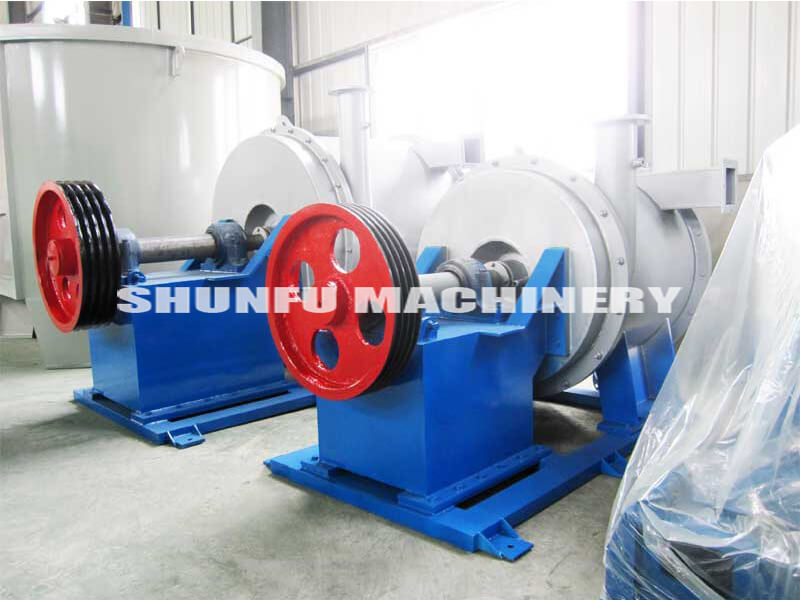

Fiber Separator
- Consistency of Paper :3-4%
- Capacity:30-160 t/d
- Feed Pressure:0.2-0.3 Mpa
- Volume:0.6-2.0 m3
- Spindle Speed:430-650 r/min
We are here to help:Easy ways to get the answers you need.
- Culture paper machine
-
- 2400mm Type Fourdrinier Multi-Dryer Newspaper Machine
- 2800mm Daily Capacity 40 Tons Fourdriner Culture Paper Machine
- 1575 Fourdrinier Cultural Paper Machine
- 1092 Type Capacity 3-4tons Writing Paper Machine
- 6-8tons culture paper machine
- 1092mm Fourdrinier Paper Making Machine
- 1092 Type Capacity 5tons Culture Paper Machine
- 787mm Type Culture Paper Machine
- 1575mm type culture paper making machine
- Specialty paper machine
-
- 1600A Model Kraft Paper Slitting Machine
- 1760mm Multi-Dryer Five Cylinder Mould Grey Cardboard Machine
- 1092mm Multi-Dryer Five Cylinder Mould Grey Cardboard Machine
- 2100mm Multi-Dryer Five Cylinder Mould Paperboard Machine
- 4 Heads CNC Spiral Paper Tube Machine
- 2 Heads CNC Spiral Paper Tube Machine
- Capacity 5-8 Per Day Paperboard Machine
Describe
♦ Main Parameter
| Type | DS-ZDWL22 | DS-ZDWL23 | DS-ZDWL31 | DS-ZDWL32 | DS-ZDWL41 | DS-ZDWL42 |
| Capacity of production (t/d) | 30-40 | 40-60 | 60-80 | 80-100 | 100-140 | 120-160 |
| Consistency of Paper (%) | 3-4 | |||||
| Dia. of screen hole (mm) | Φ4-Φ6 | |||||
| Pressure of inflow pulp (kg/cm2) | 0.12-O.3 | |||||
| Type of motor (kw) | 37 | 45 | 55 | 75 | 90 | 132 |
♦ Features
1- For processing all kinds of waste paper (including low-level waste paper), reduce the degree of pretreatment of raw materials, thereby reducing production costs.
2- To the pulp to ease the secondary, separation of light debris and heavy debris removal, thereby enhancing product quality.
3- To improve the hydraulic pulper production capacity, reduce energy consumption per unit of about 15%.
4- Automatic cleaning sieve, can get high-quality pulp, reduce fiber loss, can remove more than 90% of impurities, improve the quality of paper.
