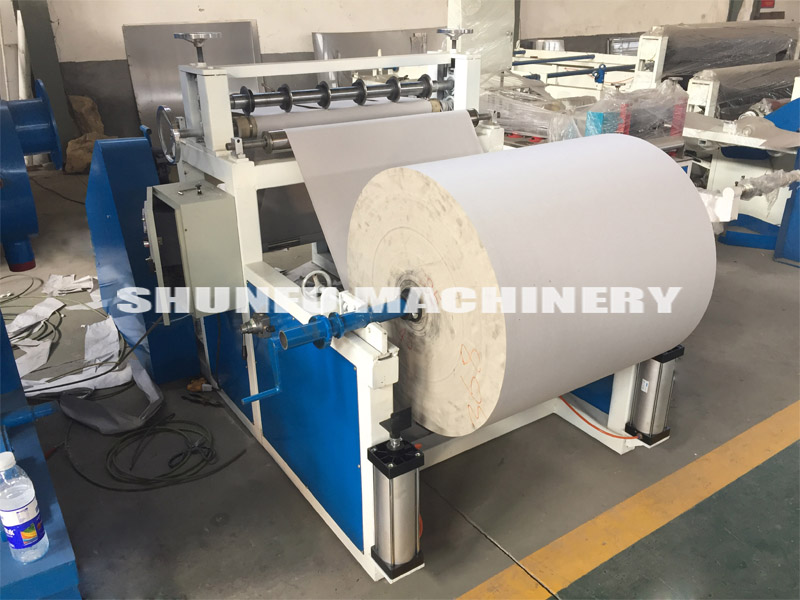

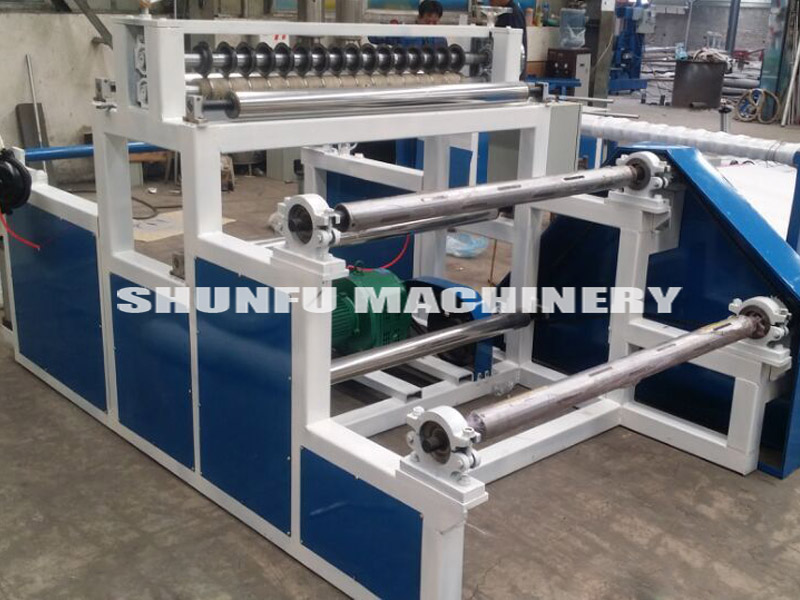

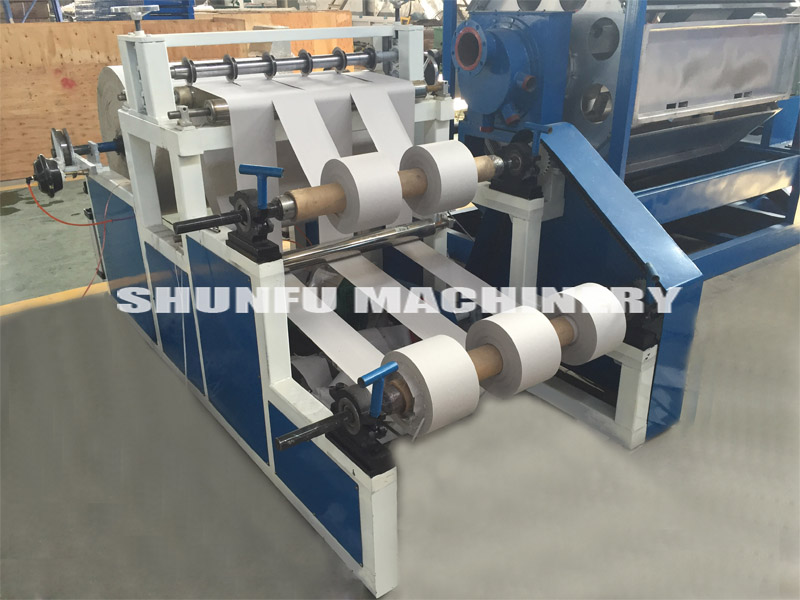

1600A Model Kraft Paper Slitting Machine
- Cutting Speed:10-200m/min
- Max Width:1600mm
- Max Diameter:1200mm
- Mounting Paper Method:Double Cylinder
- Cutter Quantity:21”
We are here to help:Easy ways to get the answers you need.
- Culture paper machine
-
- 2400mm Type Fourdrinier Multi-Dryer Newspaper Machine
- 2800mm Daily Capacity 40 Tons Fourdriner Culture Paper Machine
- 1575 Fourdrinier Cultural Paper Machine
- 1092 Type Capacity 3-4tons Writing Paper Machine
- 6-8tons culture paper machine
- 1092mm Fourdrinier Paper Making Machine
- 1092 Type Capacity 5tons Culture Paper Machine
- 787mm Type Culture Paper Machine
- 1575mm type culture paper making machine
- Specialty paper machine
-
- 1600A Model Kraft Paper Slitting Machine
- 1760mm Multi-Dryer Five Cylinder Mould Grey Cardboard Machine
- 1092mm Multi-Dryer Five Cylinder Mould Grey Cardboard Machine
- 2100mm Multi-Dryer Five Cylinder Mould Paperboard Machine
- 4 Heads CNC Spiral Paper Tube Machine
- 2 Heads CNC Spiral Paper Tube Machine
- Capacity 5-8 Per Day Paperboard Machine
Describe
♦Technology Parameter
| Cutting speed | 10-200m/min | Cutting ability | 180g-600g |
| Max width | 1600mm | Max diameter | 1200mm |
| Cutter quantity | 21” | Cutter diameter | 105mm |
| Cutting way | Double circular knife * shear | Cutting material | Silicon/SKG-11 |
| Cutter shaft size irow | Φ50mm Chrome optical axis | Cutter shaft material | Bearing steel |
| Mounting paper method | Double cylinder | Paper collecting mode | AB axis synchronous receiving |
| Host power | 3.0KW | Speed control |
Electromagnetism |
| Paper correction | Before and after,Left and right | Worker | One person |
| Host size | 2500*2200*1300 | Power | 380V RSTN |
| "Bearing steel" double knife shaft permanent no bending | |||
| Long distance tensioning axle design, working paper tension is more | |||
| Pairs of circular knife cutting design, the upper and lower knife can be between 2 - 1700mm between any adjustable width | |||
| After cutting the tape on both sides of the smooth, never with a flash, the operation is very convenient | |||
| The paper rolls, the two sides are smooth, low noise, smooth operation | |||
| High yield, single output for 2-3 rolling machine use |
|||
