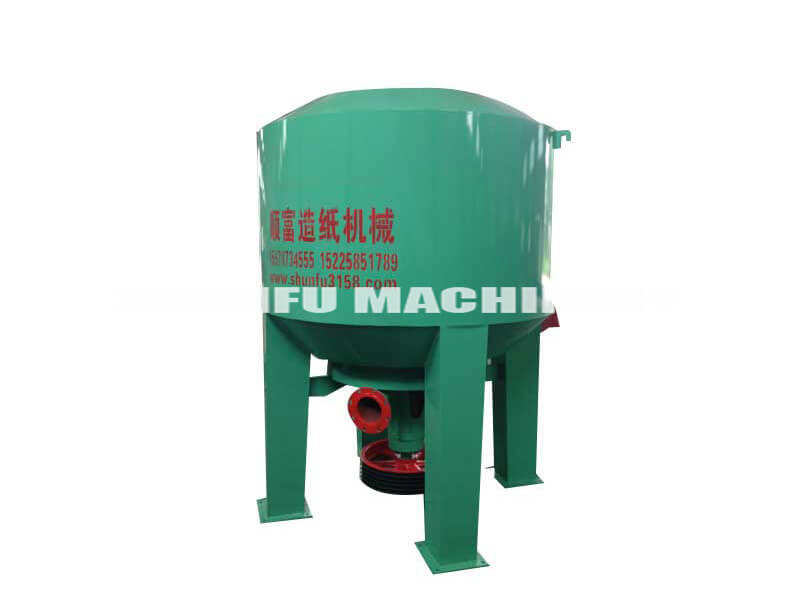

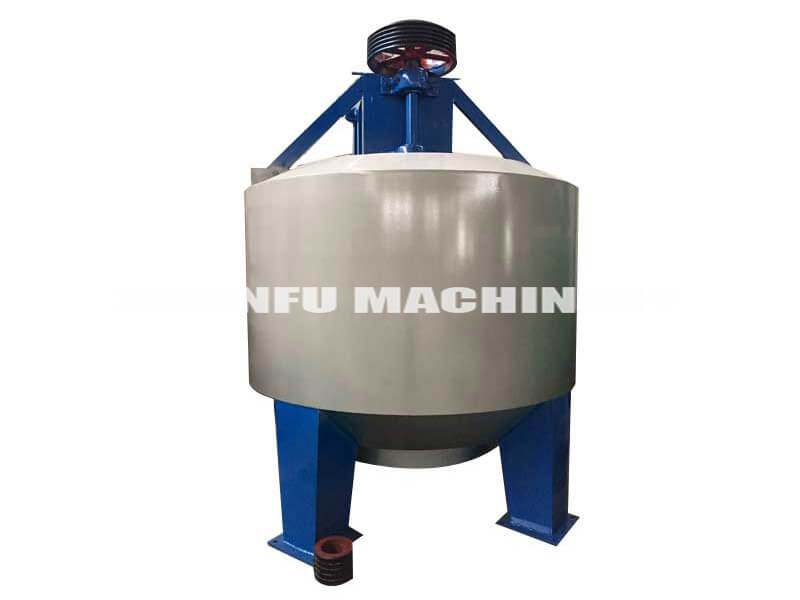

Hydrapulper
- Raw material:Waste paper, pulp board
- Pulp concentration:8~15%
We are here to help:Easy ways to get the answers you need.
- Culture paper machine
-
- 2400mm Type Fourdrinier Multi-Dryer Newspaper Machine
- 2800mm Daily Capacity 40 Tons Fourdriner Culture Paper Machine
- 1575 Fourdrinier Cultural Paper Machine
- 1092 Type Capacity 3-4tons Writing Paper Machine
- 6-8tons culture paper machine
- 1092mm Fourdrinier Paper Making Machine
- 1092 Type Capacity 5tons Culture Paper Machine
- 787mm Type Culture Paper Machine
- 1575mm type culture paper making machine
- Specialty paper machine
-
- 1600A Model Kraft Paper Slitting Machine
- 1760mm Multi-Dryer Five Cylinder Mould Grey Cardboard Machine
- 1092mm Multi-Dryer Five Cylinder Mould Grey Cardboard Machine
- 2100mm Multi-Dryer Five Cylinder Mould Paperboard Machine
- 4 Heads CNC Spiral Paper Tube Machine
- 2 Heads CNC Spiral Paper Tube Machine
- Capacity 5-8 Per Day Paperboard Machine
Describe
♦ Detailed Description
Series enhancement type high-enriched hydrapulper machine under the high temperature ,high-thick condition,make the paper material stand strong vortex circulatio function,produce strong friction,tear and crumple,make the paper material fully discontent.it has already ensure the fibre length and intensity,prevented the impurity in the wasted paper fom being crushed,and makes the printing ink pigment apter to separate out from the fiber again.it is obviously to get rid of hot melt material to get the fine pulp effect.
♦ Pulp Parameter
Series enhancement type high-enriched hydrapulper machine under the high temperature ,high-thick condition,make the paper material stand strong vortex circulatio function,produce strong friction,tear and crumple,make the paper material fully discontent.it has already ensure the fibre length and intensity,prevented the impurity in the wasted paper fom being crushed,and makes the printing ink pigment apter to separate out from the fiber again.it is obviously to get rid of hot melt material to get the fine pulp effect.
♦ Pulp Parameter
| Item parameter model | ZGS1 | ZGS2 | ZGS3 | ZGS5 | ZGS8 | ZGS10 | ZGS15 | ||||
| Effective volume (m2) | 1 | 2 | 3 | 5 | 8 | 10 | 15 | ||||
| Production capacity (t/d) | 3-4 | 6-8 | 9-12 | 15-20 | 24-32 | 30-45 | 40-80 | ||||
| Pulp concentration(%) | 8~15% | ||||||||||
| Cell body diameter (mm) | 1200 | 1550 | 1800 | 2200 | 2500 | 2800 | 3500 | ||||
| Impeller diameter (mm) | 440 | 440 | 680 | 720 | 820 | 860 | 1050 | ||||
| Impeller rotation speed (r/min) | 440 | 440 | 400 | 380 | 340 | 320 | 280 | ||||
| Pulp discharging door diameter (mm) | 108 | 159 | 219 | 219 | 219 | 250 | 250 | ||||
| Dilution door diameter (mm) | 50 | 89 | 89 | 89 | 108 | 108 | 108 | ||||
| ZGS Energy-saving type | Model | Y160L-6 | Y180L-6 | Y200L2-6 | Y225M-6 | Y280S-6 | Y280M-6 | Y315S-6 | |||
| Power kw | 11 | 15 | 22 | 30 | 45 | 55 | 75 | ||||
