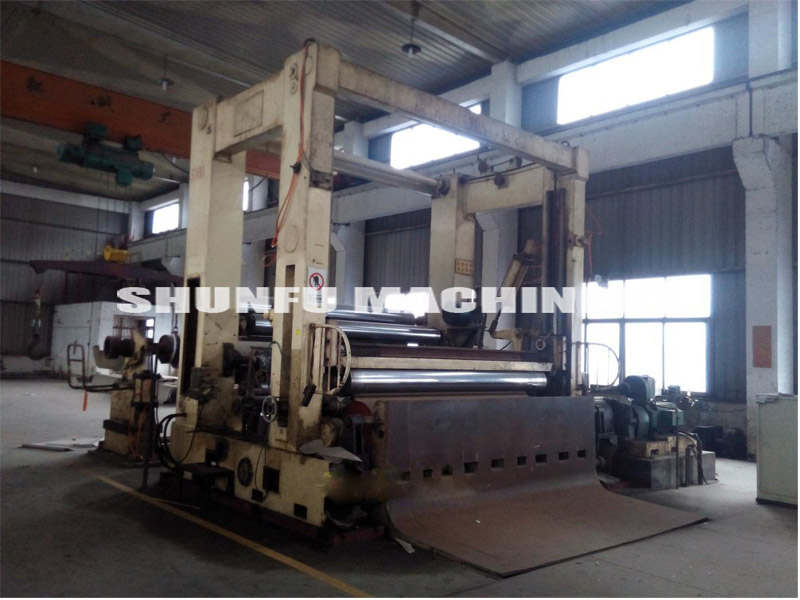

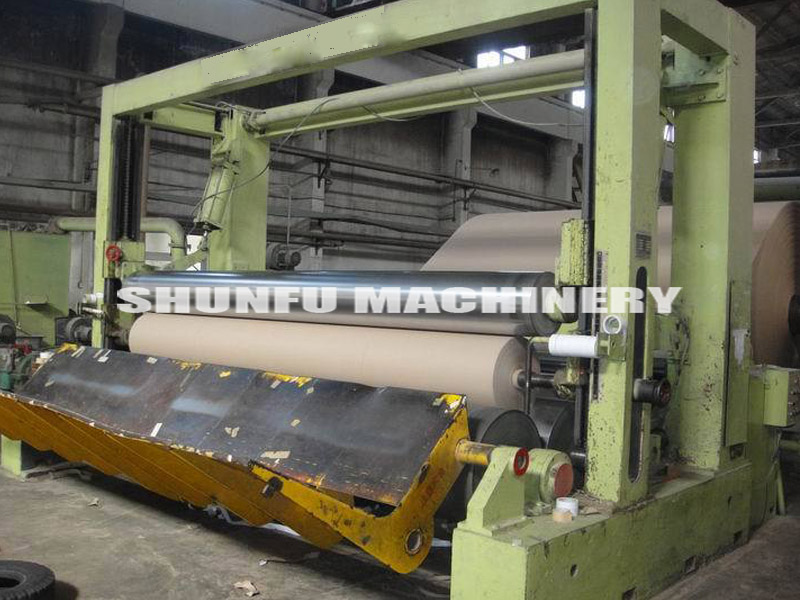

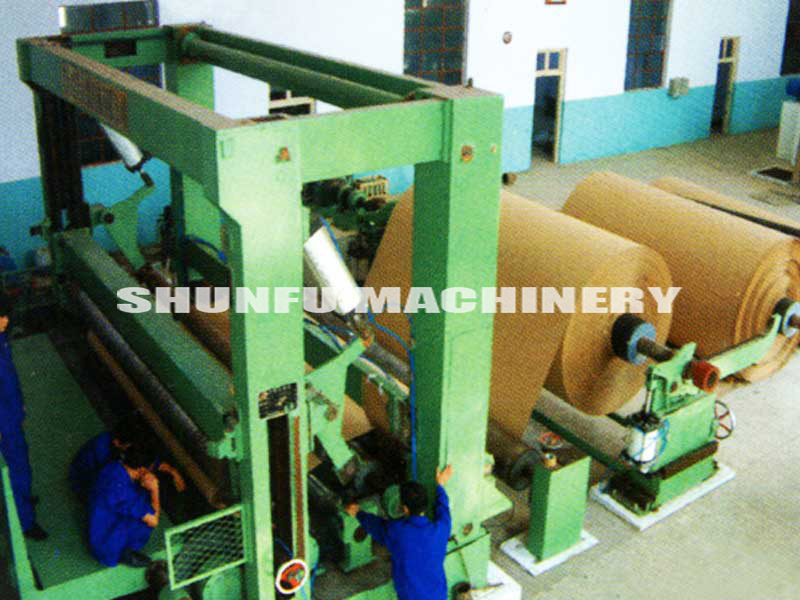

Frame Type Upper Leading Paper Rewinder Machine
- Max diameter of paper roll:1000-5000mm
- Maximum speed:300m/min
- Paper weight:50-200g/m2
- Pick up paper speed:25m/min
- Roller diameter :Φ650 mm
We are here to help:Easy ways to get the answers you need.
- Culture paper machine
-
- 2400mm Type Fourdrinier Multi-Dryer Newspaper Machine
- 2800mm Daily Capacity 40 Tons Fourdriner Culture Paper Machine
- 1575 Fourdrinier Cultural Paper Machine
- 1092 Type Capacity 3-4tons Writing Paper Machine
- 6-8tons culture paper machine
- 1092mm Fourdrinier Paper Making Machine
- 1092 Type Capacity 5tons Culture Paper Machine
- 787mm Type Culture Paper Machine
- 1575mm type culture paper making machine
- Specialty paper machine
-
- 1600A Model Kraft Paper Slitting Machine
- 1760mm Multi-Dryer Five Cylinder Mould Grey Cardboard Machine
- 1092mm Multi-Dryer Five Cylinder Mould Grey Cardboard Machine
- 2100mm Multi-Dryer Five Cylinder Mould Paperboard Machine
- 4 Heads CNC Spiral Paper Tube Machine
- 2 Heads CNC Spiral Paper Tube Machine
- Capacity 5-8 Per Day Paperboard Machine
Describe
◆ Product Description
The frame type high speed rewinder is used for paper machine on a preliminary base paper slitting, rolled with width and complex requirements of finished goods. Its main structural feature is that the lower drawing frame structure, The form of the lead paper.
The frame type high speed rewinder is used for paper machine on a preliminary base paper slitting, rolled with width and complex requirements of finished goods. Its main structural feature is that the lower drawing frame structure, The form of the lead paper.
| Type | 2400 | 2700 | 2800 | 3200 | 3400 | 3600 | 4000 |
| Rack center distance(mm) | 3680 | 3980 | 4080 | 4480 | 4680 | 4880 | 5280 |
| Bottom roll center distance(mm) | 3200 | 3500 | 3600 | 4000 | 4200 | 4400 | 4800 |
| Max diameter of paper roll | 1000-5000mm | ||||||
| Maximum speed | 300m/min | ||||||
| Paper weight | 50-200g/m2 | ||||||
| Pick up paper speed | 25m/min | ||||||
| Roller diameter | Φ650 mm | ||||||
