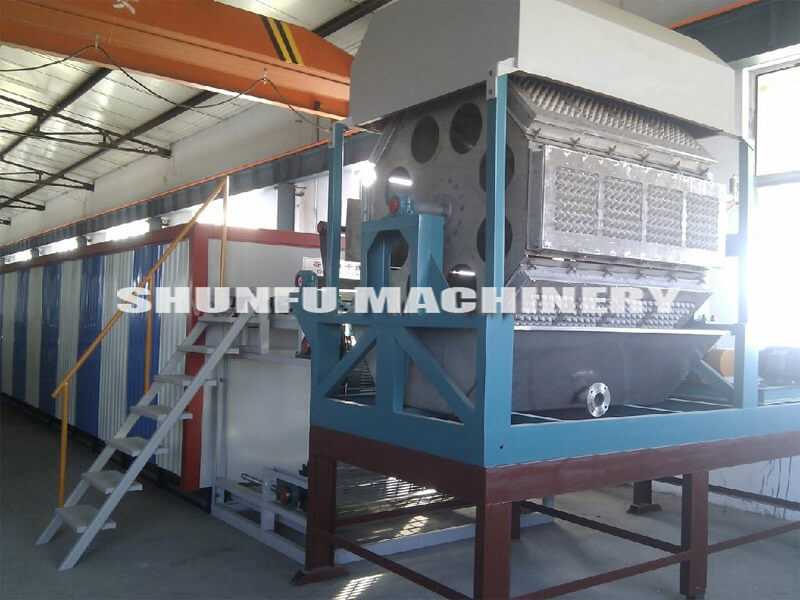

4000-5000Pcs Per Hour Egg Tray Machine
- Machine type:High speed Octahedral rotary egg tray machine(4X8)
- Raw material:Waste paper
- Production varieties:Egg tray, paper tray
- Production speed:4000-5000piece/ hour
- Total power:157KW (Intermittent use)
We are here to help:Easy ways to get the answers you need.
- Culture paper machine
-
- 2400mm Type Fourdrinier Multi-Dryer Newspaper Machine
- 2800mm Daily Capacity 40 Tons Fourdriner Culture Paper Machine
- 1575 Fourdrinier Cultural Paper Machine
- 1092 Type Capacity 3-4tons Writing Paper Machine
- 6-8tons culture paper machine
- 1092mm Fourdrinier Paper Making Machine
- 1092 Type Capacity 5tons Culture Paper Machine
- 787mm Type Culture Paper Machine
- 1575mm type culture paper making machine
- Specialty paper machine
-
- 1600A Model Kraft Paper Slitting Machine
- 1760mm Multi-Dryer Five Cylinder Mould Grey Cardboard Machine
- 1092mm Multi-Dryer Five Cylinder Mould Grey Cardboard Machine
- 2100mm Multi-Dryer Five Cylinder Mould Paperboard Machine
- 4 Heads CNC Spiral Paper Tube Machine
- 2 Heads CNC Spiral Paper Tube Machine
- Capacity 5-8 Per Day Paperboard Machine
Describe
◆ Technical Parameter
◆ Structure Introduction

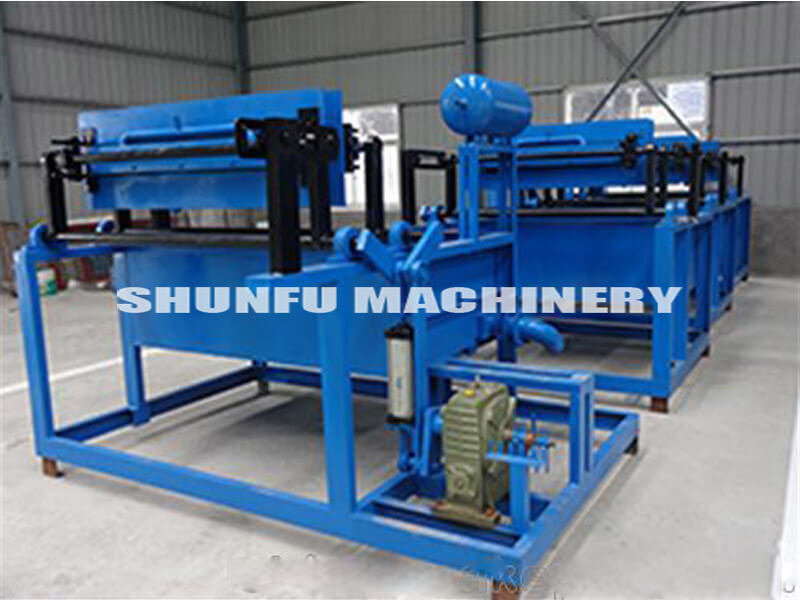

B. Forming system: Full automatic egg tray forming machine, Vacuum pump , High pressure washer, Negative pressure tank , mould, Transfer mould, baler .
C. Drying system: There are 2 kinds of drying system. One is metal, the other is brick. The conveyor plate can be one layer and multi-layer, direct combustion hot air circulation.
◆ FAQ
1)Q : What's the raw material of Egg tray molding equipment?
A:Material for the molded pulp products is waste paper,corrugated paper,waste newspaper,magazine.
2)Q :What type of the pulp product can be produced?
A:By changing relevant molds, our pulp molding machinery can make many kinds of pulp trays, egg trays,
egg cartons, bottle trays,electric spare part trays, fruit trays,etc.
3)Q:What kind of Fuel can be used for the whole production line?
A: Gernerally is coal, natural gas, dieseal oil can be selectable.
4)Q : What we should do get a better quotation ?
A:When your sent your inquiry, please tell us tray shapes and production capacity you want .
| Machine type | High speed Octahedral rotary egg tray machine(4X8) |
| Raw material | Waste paper |
| Production varieties | Egg tray, paper tray |
| Production speed | 4000-5000piece/ hour |
| Total power | 157KW (Intermittent use) |
|
Pulp concentration for forming machine |
0.8-1% |
| Pressure of compressed air | 0.5-0.7Mpa |
| Vacuum negative pressure | Minus 0.035--- minus 0.045Mpa |
| Voltage | 380V |
| Frequency | 50 Hz |
◆ Structure Introduction
B. Forming system: Full automatic egg tray forming machine, Vacuum pump , High pressure washer, Negative pressure tank , mould, Transfer mould, baler .
C. Drying system: There are 2 kinds of drying system. One is metal, the other is brick. The conveyor plate can be one layer and multi-layer, direct combustion hot air circulation.
◆ FAQ
1)Q : What's the raw material of Egg tray molding equipment?
A:Material for the molded pulp products is waste paper,corrugated paper,waste newspaper,magazine.
2)Q :What type of the pulp product can be produced?
A:By changing relevant molds, our pulp molding machinery can make many kinds of pulp trays, egg trays,
egg cartons, bottle trays,electric spare part trays, fruit trays,etc.
3)Q:What kind of Fuel can be used for the whole production line?
A: Gernerally is coal, natural gas, dieseal oil can be selectable.
4)Q : What we should do get a better quotation ?
A:When your sent your inquiry, please tell us tray shapes and production capacity you want .
