Rubber Roller

Type:Paper machinery parts
Surface:Rubber or stainless steel
Model Number:787-3200
Power:5.5KW
Voltage:220V/380V

We are here to help:Easy ways to get the answers you need.

Send Email Chat Now

PRODUCT LIST

Toilet paper machine

Toilet paper processing machinery

Culture paper machine

Kraft/Corrugated paper machine

Specialty paper machine

Paper completed section

Paper machine supporting machine

Egg tray machine

Pulping equipment

HOT PRODUCT

Describe

◆ Performance Instruction

Specializing in paper making machine, doing without rotation direction, having uniform crystal and tough texture, and never loosen. The indicates of anti-pressure and water absorption are superior to ministerial standard.

◆ Main Technical Date

NO.	Applied Net paper width	Center distance	Diameter*width	Regulation range	Suction mouth width
1	1760	2760	500*2260	1780-1980	80
2	1760	2860	500*2360	1880-2080	80
3	1760	2890	500*2490	1760-2200	100
4	2362	3400	550*2900	2400-2600	150
5	3150	4300	650*3710	3220-3420	150
6	3150	4475	720*3775	3100-3500	100
7	3200	4530	650*3940	3405-3645	150

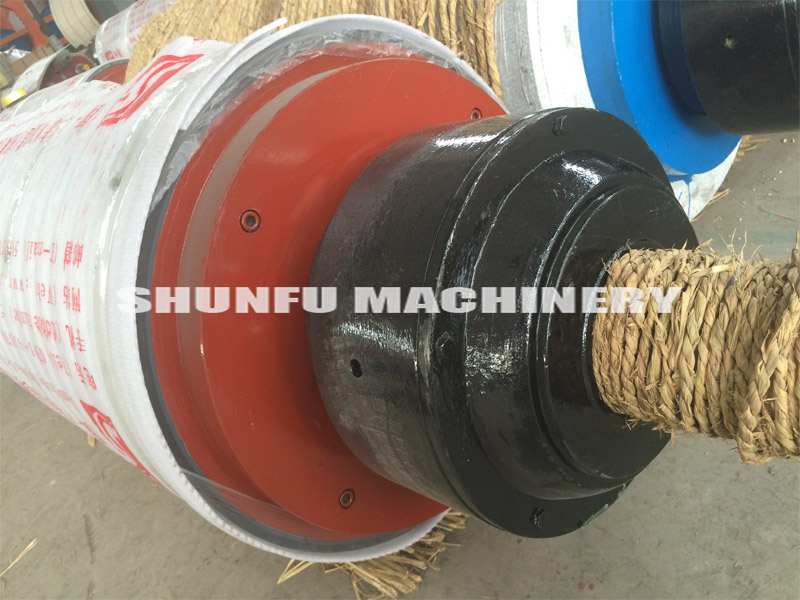

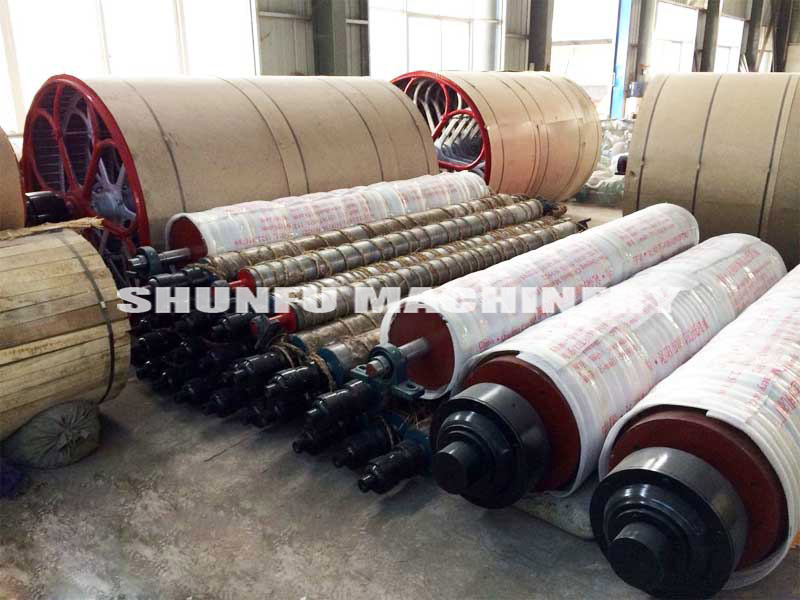

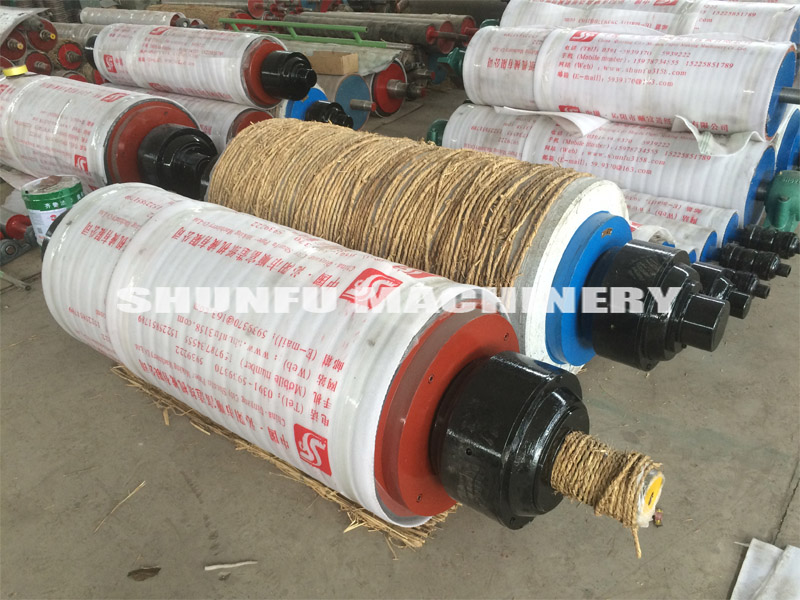

◆ Paper Machine Roll

1.The roller is made of cast steel and the surface is covered by rubber.

2.Bulkhead is HT200.

3.Roller and inside and outside diameter will be processed.

4.And after that we will process rollers’ dynamic balance to improve machines’ stability.

5.And before the spindle head has been installed ,we will make the second dynamic balance.
