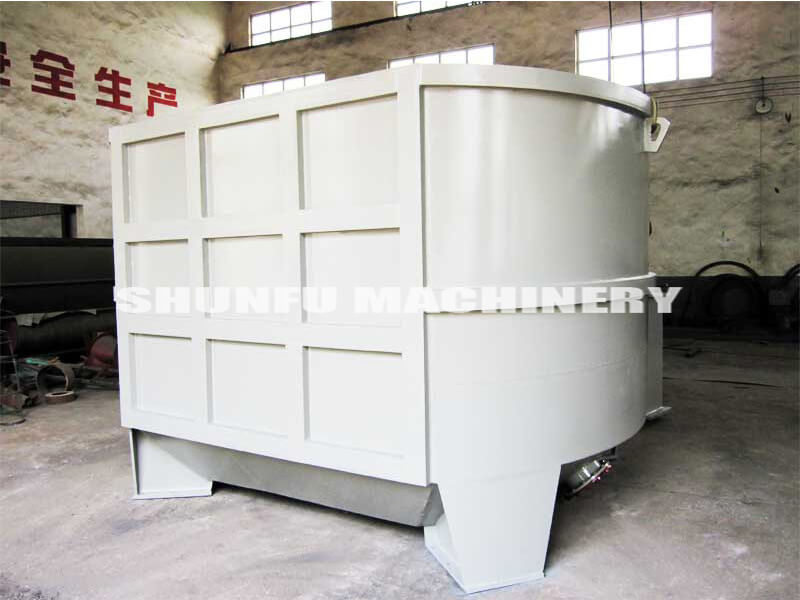

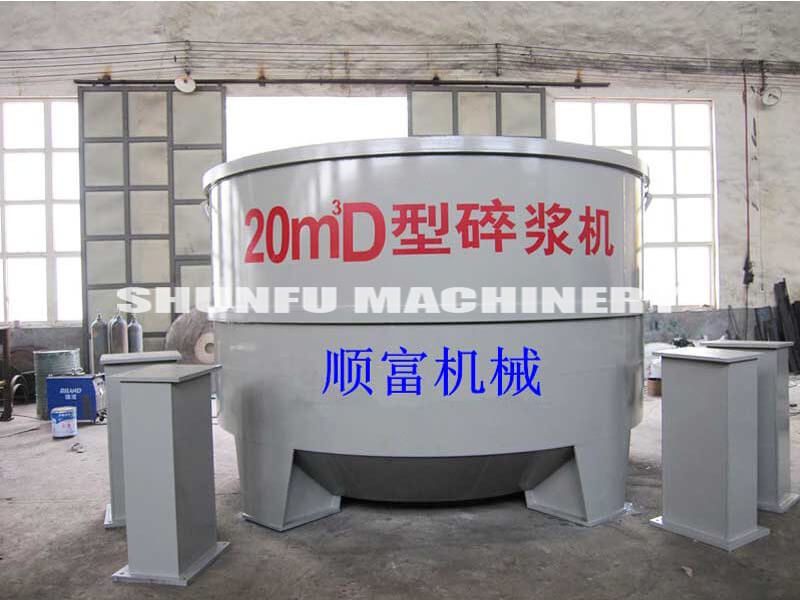

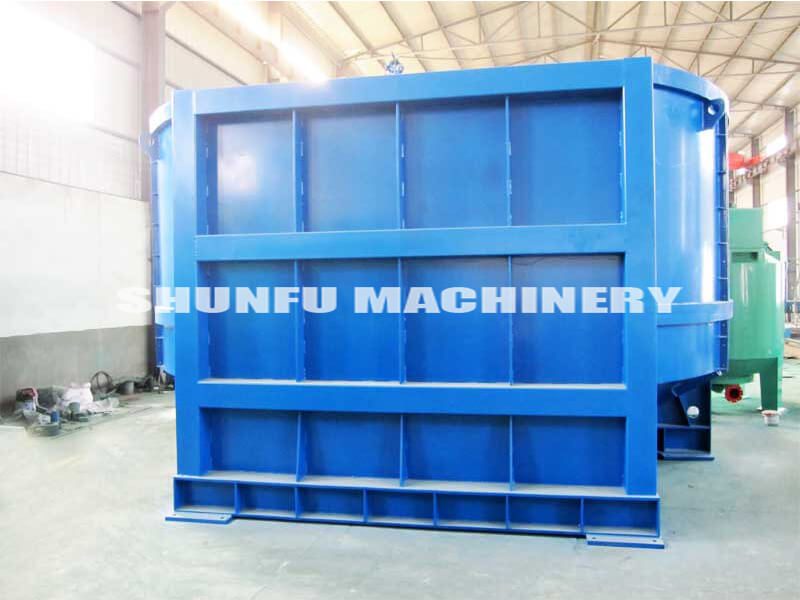

D Type Hydrapulper
- Raw material:Pulp board,waste paper
- Pulp concentration:2-5
- Capacity:60~1500t/d
- Application area:Papermaking industry
We are here to help:Easy ways to get the answers you need.
- Culture paper machine
-
- 2400mm Type Fourdrinier Multi-Dryer Newspaper Machine
- 2800mm Daily Capacity 40 Tons Fourdriner Culture Paper Machine
- 1575 Fourdrinier Cultural Paper Machine
- 1092 Type Capacity 3-4tons Writing Paper Machine
- 6-8tons culture paper machine
- 1092mm Fourdrinier Paper Making Machine
- 1092 Type Capacity 5tons Culture Paper Machine
- 787mm Type Culture Paper Machine
- 1575mm type culture paper making machine
- Specialty paper machine
-
- 1600A Model Kraft Paper Slitting Machine
- 1760mm Multi-Dryer Five Cylinder Mould Grey Cardboard Machine
- 1092mm Multi-Dryer Five Cylinder Mould Grey Cardboard Machine
- 2100mm Multi-Dryer Five Cylinder Mould Paperboard Machine
- 4 Heads CNC Spiral Paper Tube Machine
- 2 Heads CNC Spiral Paper Tube Machine
- Capacity 5-8 Per Day Paperboard Machine
Describe
♦ Pulp Parameter
|
Type |
Nominal volume(m3) |
Capacity of production (t/d) |
Pulp concentration(%) |
Power of motor(kw) |
|
10 |
10 |
60-90 |
2-5 |
110 |
|
15 |
15 |
80-120 |
2-5 |
160 |
|
20 |
20 |
140-180 |
2-5 |
185 |
|
25 |
25 |
180-230 |
2-5 |
250 |
|
30 |
30 |
230-280 |
2-5 |
280 |
|
40 |
40 |
300-370 |
2-5 |
355 |
♦ Detail Description
Series D type water power pulp machine has changed the thick liquid material streamline direction of the traditional round type pulp machine and make the thick liquid material always tend to the center direction .It improve the height of thick liquid location of the center position, increased the thick liquid material to the number of striking times of the impeller at the same time, discongested 30% of ability after improving the thick liquid material. It is ideal equipment that the papermaking industry used in the intermittence and succession to pulp the thick liquid board, decreased paper and wasted paper.
