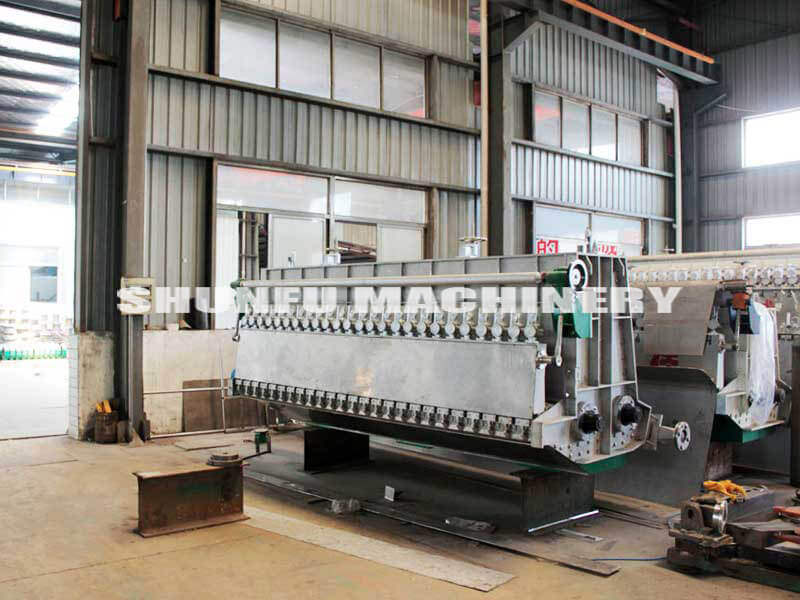

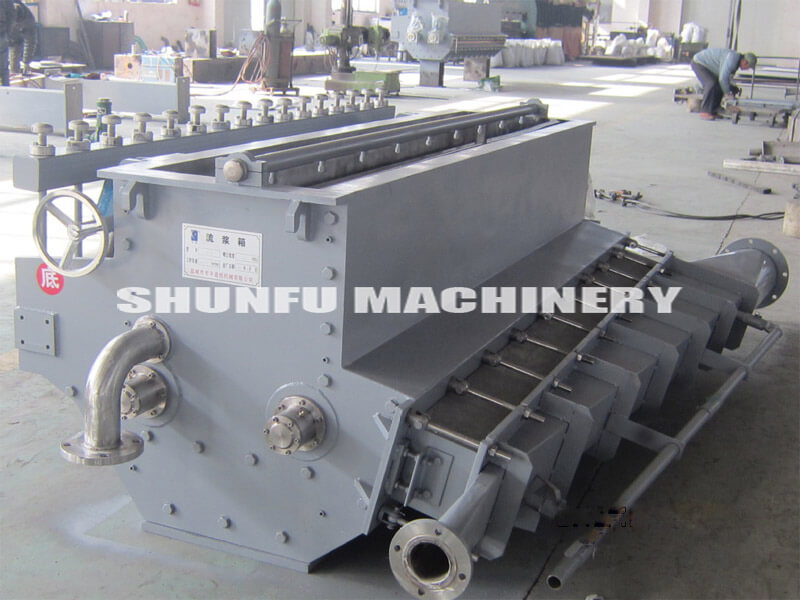

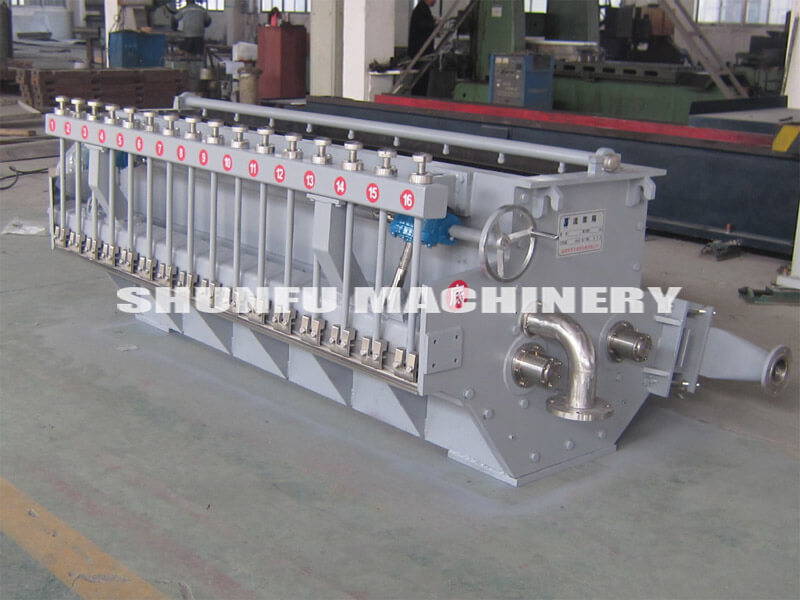

Open Head Box
- Application:In paper machine
- Weight:According to types
- Material:Stainless steel
- Voltage:220V/380V
- Power:2.2-4(kw)
We are here to help:Easy ways to get the answers you need.
- Culture paper machine
-
- 2400mm Type Fourdrinier Multi-Dryer Newspaper Machine
- 2800mm Daily Capacity 40 Tons Fourdriner Culture Paper Machine
- 1575 Fourdrinier Cultural Paper Machine
- 1092 Type Capacity 3-4tons Writing Paper Machine
- 6-8tons culture paper machine
- 1092mm Fourdrinier Paper Making Machine
- 1092 Type Capacity 5tons Culture Paper Machine
- 787mm Type Culture Paper Machine
- 1575mm type culture paper making machine
- Specialty paper machine
-
- 1600A Model Kraft Paper Slitting Machine
- 1760mm Multi-Dryer Five Cylinder Mould Grey Cardboard Machine
- 1092mm Multi-Dryer Five Cylinder Mould Grey Cardboard Machine
- 2100mm Multi-Dryer Five Cylinder Mould Paperboard Machine
- 4 Heads CNC Spiral Paper Tube Machine
- 2 Heads CNC Spiral Paper Tube Machine
- Capacity 5-8 Per Day Paperboard Machine
Describe
Head box is one of the key parts of the paper making machine, which is used for fourdrinier former. The Open head box is to provide uniform and stable pulp for wire part.
The distributor of head box is square conical pipe header pipe inlet pulp and step orifice plate distributes pulp. Uniform pulp device is two uniform pulp rolls with different open porosity. Spraying pulp lip is hinged top lip plate (sing/double hing). Lip edge is with vertical small lip plate, and on the base is equipped with percentage display and precision worm gear box to adjust small lip plate fine-turning equipment. The biggest opening on the top lip plate is >70~90 mm, which is easy to clean and maintain. It is manual worm gear box to adjust top lip plate for smooth and easy.
◆ Technical Specification
|
1 |
Trimmed width (mm) |
3200 |
3600 |
3800 |
|
2 |
Width of jet (mm) |
3350 |
3800 |
4050 |
|
3 |
Work speed (m/min) |
200-300 |
200-300 |
200-300 |
|
4 |
Diameter of holy roll (mm) |
Ø220 |
Ø220 |
Ø220 |
|
5 |
Cloth paste way |
Square taper pipe into the slurry,cloth pulp by the organic glass holey plate |
||
|
6 |
Arrangement |
Left or right hand machine |
||
|
8 |
Outline size (L*W*H M) |
2.6*4.4*1.6 |
2.6*4.4*1.6 |
2.6*5*1.6 |
◆ The Main Equipment Of The Headbox
1.Holy roll: 2 s
2.
3.
4. The headbox is welded steel, lined with mirror stainless steel plate or can
5. Adjusting device : With a total transfer mechanism and the trim mechanism
6.Spray device : The box body is provided with a spray device.
