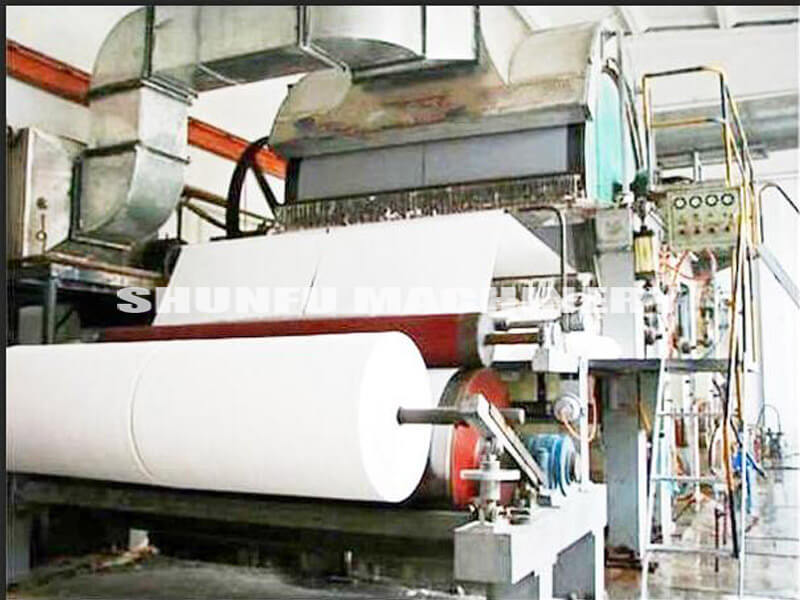

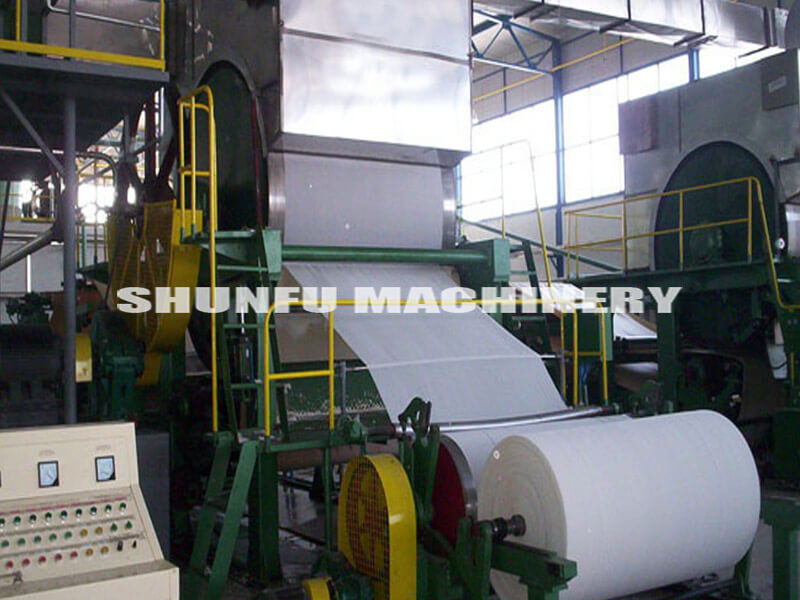

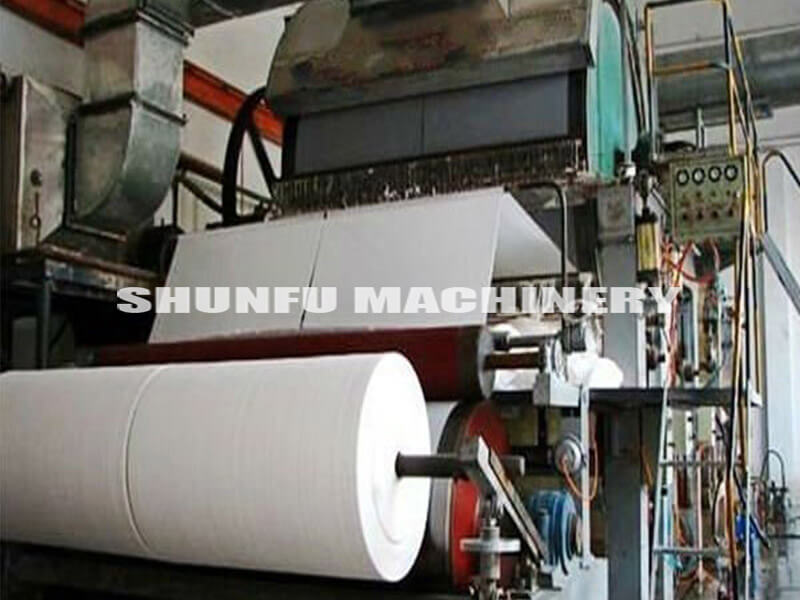

1575mm type culture paper making machine
- Output paper:Culture paper, Writing paper, A4 paper
- Raw material:Waste books and magazines etc.
- Net paper width:1700mm
- Capacity:10T/D
- Working speed:100-120m/min
We are here to help:Easy ways to get the answers you need.
- Culture paper machine
-
- 2400mm Type Fourdrinier Multi-Dryer Newspaper Machine
- 2800mm Daily Capacity 40 Tons Fourdriner Culture Paper Machine
- 1575 Fourdrinier Cultural Paper Machine
- 1092 Type Capacity 3-4tons Writing Paper Machine
- 6-8tons culture paper machine
- 1092mm Fourdrinier Paper Making Machine
- 1092 Type Capacity 5tons Culture Paper Machine
- 787mm Type Culture Paper Machine
- 1575mm type culture paper making machine
- Specialty paper machine
-
- 1600A Model Kraft Paper Slitting Machine
- 1760mm Multi-Dryer Five Cylinder Mould Grey Cardboard Machine
- 1092mm Multi-Dryer Five Cylinder Mould Grey Cardboard Machine
- 2100mm Multi-Dryer Five Cylinder Mould Paperboard Machine
- 4 Heads CNC Spiral Paper Tube Machine
- 2 Heads CNC Spiral Paper Tube Machine
- Capacity 5-8 Per Day Paperboard Machine
Describe
◆ Technical Parameter
| Output paper | Writing paper, Culture paper, A4 paper |
| Raw material | Waste books and magazines etc |
| Net paper width | 1700mm |
| Winding width | 1650mm |
| Rail gauge | 2400mm |
| Capacity | 10T/D |
| Transmission form | Sectional drive, frequency control of motor speed, programming transmission |
| Working speed | 100-120m/min |
◆ The Main Structure
B. Compression part: One Φ450mm×1450mm stone roll, One Φ400mm×1450mm rubber roll, Rubber hardness HSD 90℃±2, Pneumatic loaded device
C. Dryer part: Φ2000mm×1450mm dryer 1set, Φ1500mm×1450mm dryer 1set, Φ400mm×1450mm touch roll 1set, Rubber hardness HSD 90℃±2
D. Calander part: Φ2000mm×1450mm dryer 1set, Φ1500mm×1450mm dryer 1set, Φ400mm×1450mm touch roll 1set, Rubber hardness HSD 90℃±2
E. Winding machine part: Winding paper can: 1 set In it through cooling water, which is for paper temperature reduction, so it is easy to rewind; Winding roll: two, Ø159mm，made from 10mm roll cart, axle head is 45# steel
F. Driving & control part: Motors with AC frequency convertor & adjustable speed, processing transmission. All Digital Close-Loop control system.
G. Foundation part: From cylinder part to the driven side of the winding machine and the foundation plate of operation side.
