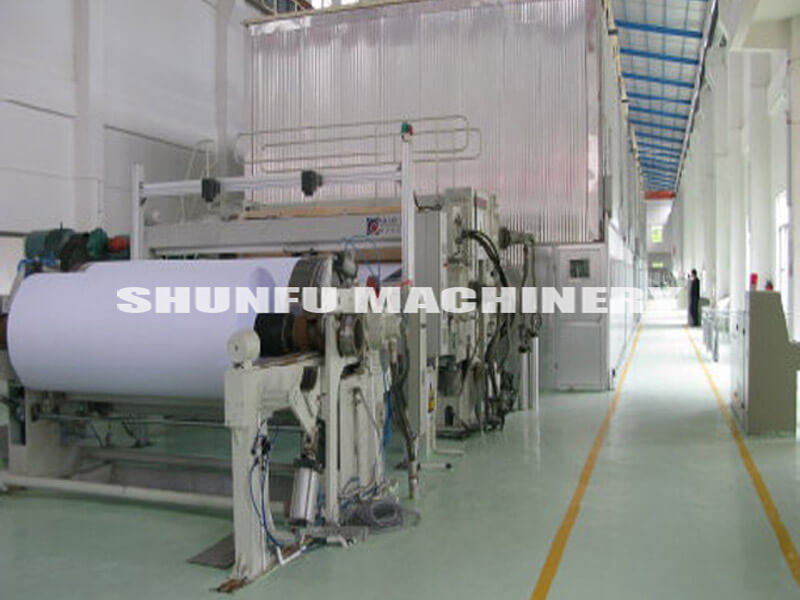

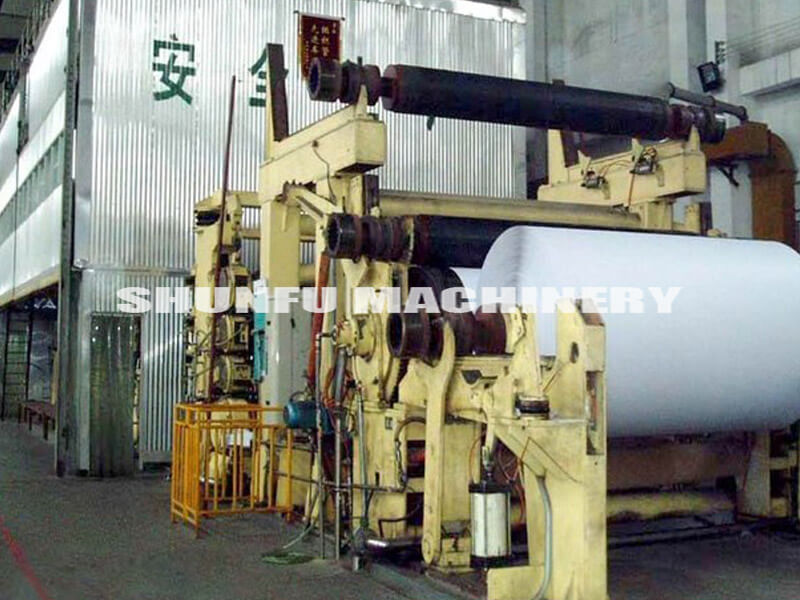

1575 Fourdrinier Cultural Paper Machine
- Raw material:Virgin pulp, waste paper
- Output paper:Cultural paper, A4 copy paper, writing paper
- Net paper width:1575mm
- Winding width:1650mm
- Capacity:10-15T/D
We are here to help:Easy ways to get the answers you need.
- Culture paper machine
-
- 2400mm Type Fourdrinier Multi-Dryer Newspaper Machine
- 2800mm Daily Capacity 40 Tons Fourdriner Culture Paper Machine
- 1575 Fourdrinier Cultural Paper Machine
- 1092 Type Capacity 3-4tons Writing Paper Machine
- 6-8tons culture paper machine
- 1092mm Fourdrinier Paper Making Machine
- 1092 Type Capacity 5tons Culture Paper Machine
- 787mm Type Culture Paper Machine
- 1575mm type culture paper making machine
- Specialty paper machine
-
- 1600A Model Kraft Paper Slitting Machine
- 1760mm Multi-Dryer Five Cylinder Mould Grey Cardboard Machine
- 1092mm Multi-Dryer Five Cylinder Mould Grey Cardboard Machine
- 2100mm Multi-Dryer Five Cylinder Mould Paperboard Machine
- 4 Heads CNC Spiral Paper Tube Machine
- 2 Heads CNC Spiral Paper Tube Machine
- Capacity 5-8 Per Day Paperboard Machine
Describe
| Raw material | Virgin pulp, waste paper |
| Output paper | Cultural paper, A4 copy paper, writing paper |
| Net paper width | 1575mm |
| Winding width | 1650mm |
| Capacity | 10-15T/D |
| Rail gauge | 2400mm |
| Cylinder mould width | 1550mm |
| Headbox lip width | 1950mm |
| Working speed | 100- 130 m/min |
| Designed working speed | 160 m/min |
| Dynamic balancing working speed | 200 m/min |
| Creeper working speed | 25 m/min |
| Arrange forming | Ground floor arrange |
| Drive | AC Frequency conversion, section drive |
◆ Description Of Main Structure
1. Wire section: It consists of flow part, forming section. Round cylinder mould, couch and evening device and
so on form the flow and forming section.
2. Presssection:This section has three main press.Pneumatic tyre pressure main press section. Press felt are
equipped with corrector, tensioner.
3. Drying section: In order to guarantee the drying capacity of the drying part. This paper machine has 3 groups
1500mm and they are divided into 4+6+4.
4. Driving section: The total installed capacity of this machine is 223kw.
5. Foundation part: The foundation part of this machine include foundation plate, anchor bolt, iron pad on paper
machine foundation drawing. Foundation plate indicates all kinds of bottom rail, guide rail, foundation base and so on
of the paper machine.
