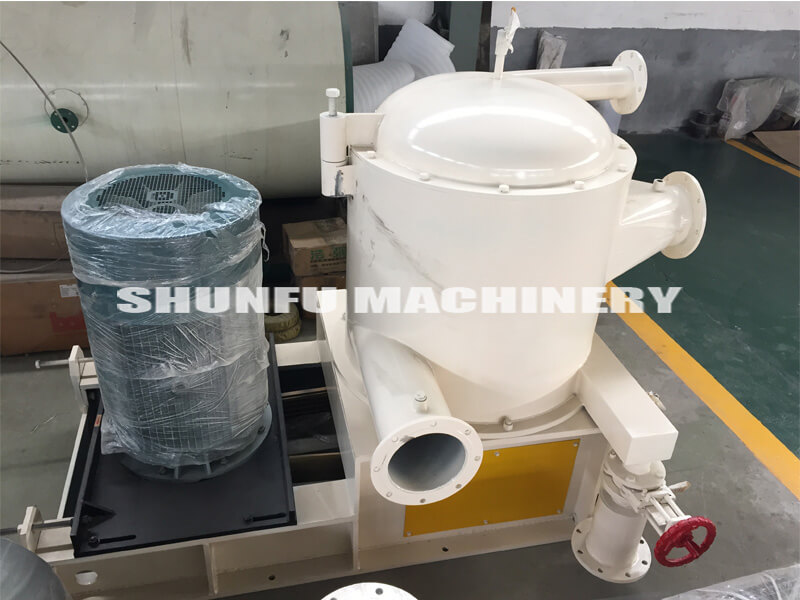

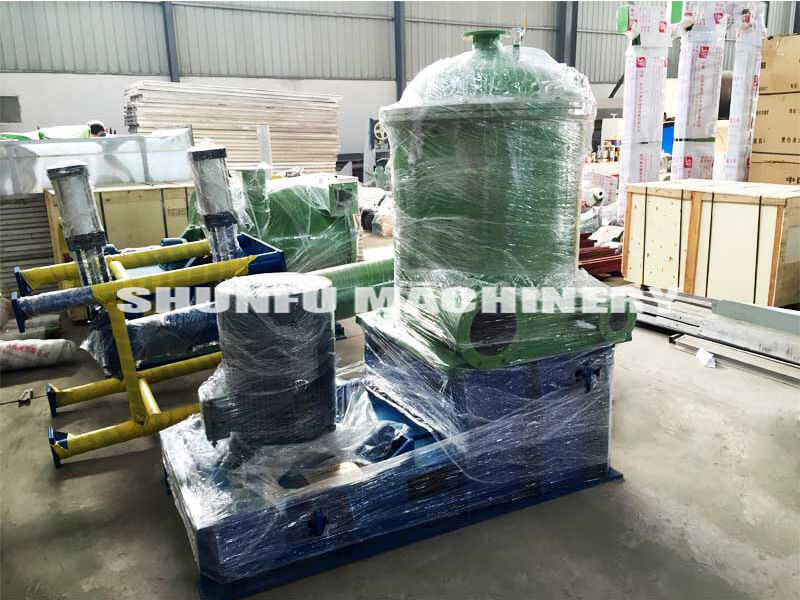

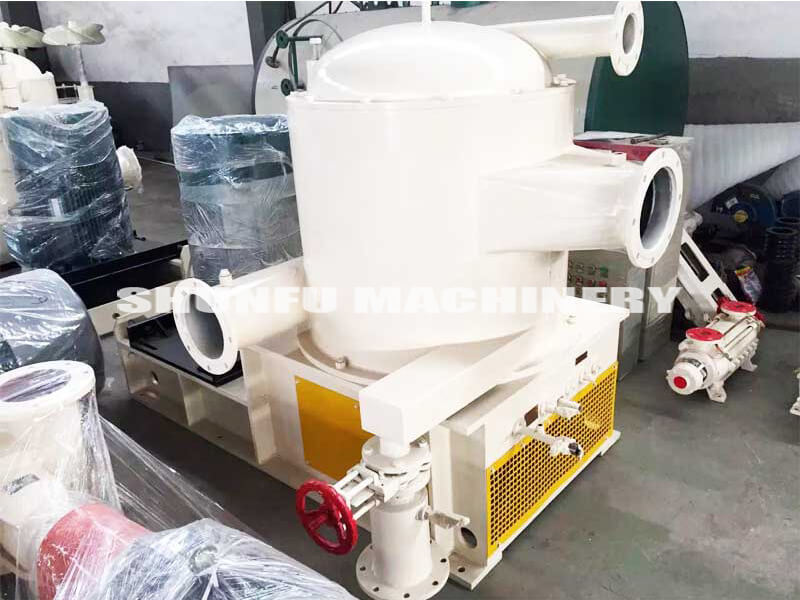

Pressure Screen
- Nominal Volume :0.6-3.0 m²
- Screen Hole:1.0-3.0 mm
- Consistency:0.5-4.0
- Capacity :20-250 t/d
- Motor Power:15-75 KW
We are here to help:Easy ways to get the answers you need.
- Culture paper machine
-
- 2400mm Type Fourdrinier Multi-Dryer Newspaper Machine
- 2800mm Daily Capacity 40 Tons Fourdriner Culture Paper Machine
- 1575 Fourdrinier Cultural Paper Machine
- 1092 Type Capacity 3-4tons Writing Paper Machine
- 6-8tons culture paper machine
- 1092mm Fourdrinier Paper Making Machine
- 1092 Type Capacity 5tons Culture Paper Machine
- 787mm Type Culture Paper Machine
- 1575mm type culture paper making machine
- Specialty paper machine
-
- 1600A Model Kraft Paper Slitting Machine
- 1760mm Multi-Dryer Five Cylinder Mould Grey Cardboard Machine
- 1092mm Multi-Dryer Five Cylinder Mould Grey Cardboard Machine
- 2100mm Multi-Dryer Five Cylinder Mould Paperboard Machine
- 4 Heads CNC Spiral Paper Tube Machine
- 2 Heads CNC Spiral Paper Tube Machine
- Capacity 5-8 Per Day Paperboard Machine
Describe
| Model | SLNS-1 | SLNS-2 | SLNS-3 | SLNS-4 |
| Screen drum area(m2) | 0.6 | 1.2 | 2 | 3 |
| Screen drum slit width(mm) | 0.15-0.55 | |||
| Pulping-in pressure(mpa) | 0.1-0.25 | |||
| Pulping –out pressure(mpa) | 0.01-0.04 | |||
| Screening concentration(mpa) | 1.0-2.0 | |||
| Production capacity(t/d) | 20-60 | 25-90 | 40-150 | 50-250 |
| Motor power(kw) | 15-18.5 | 22-30 | 37-45 | 55-75 |
♦ Effect
1- Remove dust and impurities from the slurry.
2- The slurry is homogeneously dispersed, resulting in a homogeneously dispersed fiber suspension.
♦ Structure
The pressure screen is composed of a machine body, a transmission device, screen shares, a rotor and the relevant electrical components.
♦ Advantage
1- Designed for the classification and screening of recycled pulp. It has two functions: long and short fiber classification and slurry screening.
2- Consumption is very low, only for the traditional classification of 1/3 screen, fiber classification and impurity removal efficiency, screening effect is good, reduce the burden of subsequent screening equipment.
3- Production capacity, simple structure, easy maintenance.
