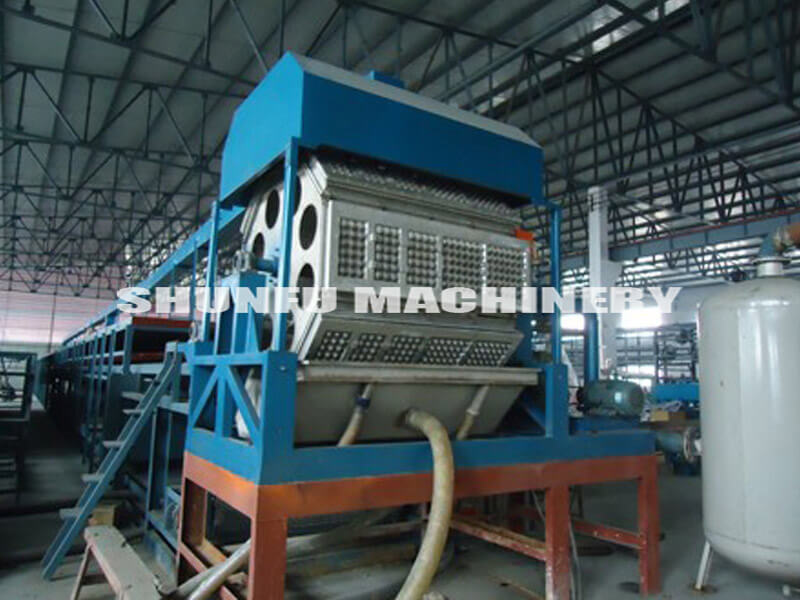

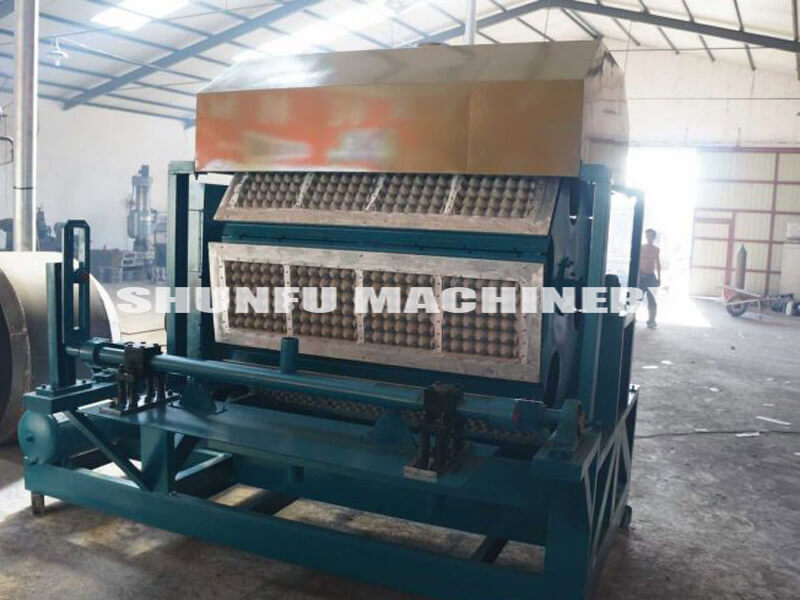

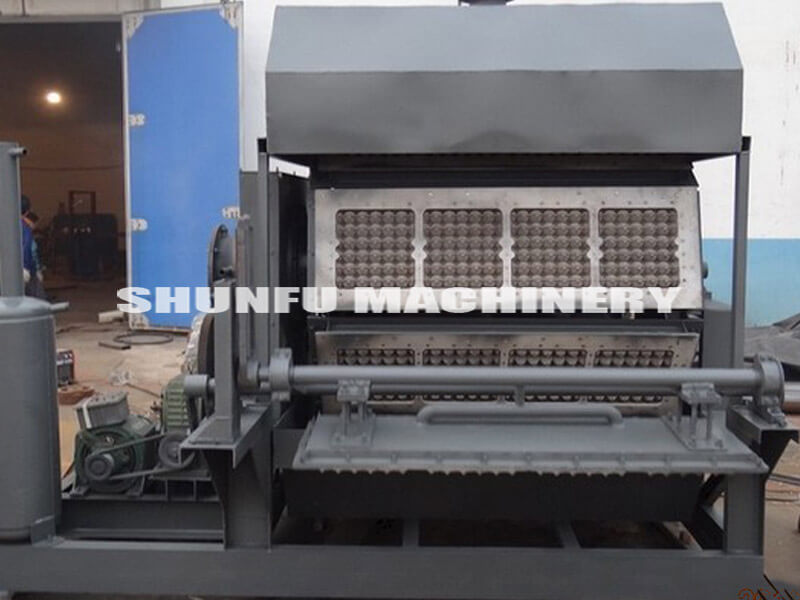

1500-1700Pcs Per Hour Egg Tray Machine
- Machine type:SF-1*4 egg tray machine
- Raw material:Waste paper, waste bin
- Production varieties:Egg tray, paper tray
- Production speed:1500-1700piece/ hour
- Total power:60KW
We are here to help:Easy ways to get the answers you need.
- Culture paper machine
-
- 2400mm Type Fourdrinier Multi-Dryer Newspaper Machine
- 2800mm Daily Capacity 40 Tons Fourdriner Culture Paper Machine
- 1575 Fourdrinier Cultural Paper Machine
- 1092 Type Capacity 3-4tons Writing Paper Machine
- 6-8tons culture paper machine
- 1092mm Fourdrinier Paper Making Machine
- 1092 Type Capacity 5tons Culture Paper Machine
- 787mm Type Culture Paper Machine
- 1575mm type culture paper making machine
- Specialty paper machine
-
- 1600A Model Kraft Paper Slitting Machine
- 1760mm Multi-Dryer Five Cylinder Mould Grey Cardboard Machine
- 1092mm Multi-Dryer Five Cylinder Mould Grey Cardboard Machine
- 2100mm Multi-Dryer Five Cylinder Mould Paperboard Machine
- 4 Heads CNC Spiral Paper Tube Machine
- 2 Heads CNC Spiral Paper Tube Machine
- Capacity 5-8 Per Day Paperboard Machine
Describe
◆ Technical Parameter
◆ Outline
The project uses waste paper, waste paper as raw material to produce egg tray. This section consists of four parts production line(That pulping system, molding system, drying systems, packaging systems).
◆ Function
1. Package for glass and ceramics, crafts, small machinery, electric products, toys and so on.
2. Replace the plastic bag and corrugated paper.
3. With good protection performance and cushioning performance, reduce the damage of goods.
4. Improve packaging grade, reduce production costs.
5. Product environment and can be recycled use.
| Machine type | SF-1*4 egg tray machine |
| Raw material | Waste paper, waste bin |
| Production varieties | Egg tray, paper tray |
| Production speed | 1500-1700piece/ hour |
| Total power | 60KW |
| Pulp concentration for forming machine | 0.8-1% |
| Pressure of compressed air | 0.5-0.7Mpa |
| Vacuum negative pressure | Minus 0.035--- minus 0.045Mpa |
| Voltage | 380 V |
| Frequency | 50 Hz |
◆ Outline
The project uses waste paper, waste paper as raw material to produce egg tray. This section consists of four parts production line(That pulping system, molding system, drying systems, packaging systems).
◆ Function
1. Package for glass and ceramics, crafts, small machinery, electric products, toys and so on.
2. Replace the plastic bag and corrugated paper.
3. With good protection performance and cushioning performance, reduce the damage of goods.
4. Improve packaging grade, reduce production costs.
5. Product environment and can be recycled use.
