Vibrating Screen
- Voltage:380v
- Power:100-150kw
- Model number:Various
- Amplitude:4-5mm
- Vibration frequency:1440t/min
We are here to help:Easy ways to get the answers you need.
- Culture paper machine
-
- 2400mm Type Fourdrinier Multi-Dryer Newspaper Machine
- 2800mm Daily Capacity 40 Tons Fourdriner Culture Paper Machine
- 1575 Fourdrinier Cultural Paper Machine
- 1092 Type Capacity 3-4tons Writing Paper Machine
- 6-8tons culture paper machine
- 1092mm Fourdrinier Paper Making Machine
- 1092 Type Capacity 5tons Culture Paper Machine
- 787mm Type Culture Paper Machine
- 1575mm type culture paper making machine
- Specialty paper machine
-
- 1600A Model Kraft Paper Slitting Machine
- 1760mm Multi-Dryer Five Cylinder Mould Grey Cardboard Machine
- 1092mm Multi-Dryer Five Cylinder Mould Grey Cardboard Machine
- 2100mm Multi-Dryer Five Cylinder Mould Paperboard Machine
- 4 Heads CNC Spiral Paper Tube Machine
- 2 Heads CNC Spiral Paper Tube Machine
- Capacity 5-8 Per Day Paperboard Machine
Describe
◆ Product Description

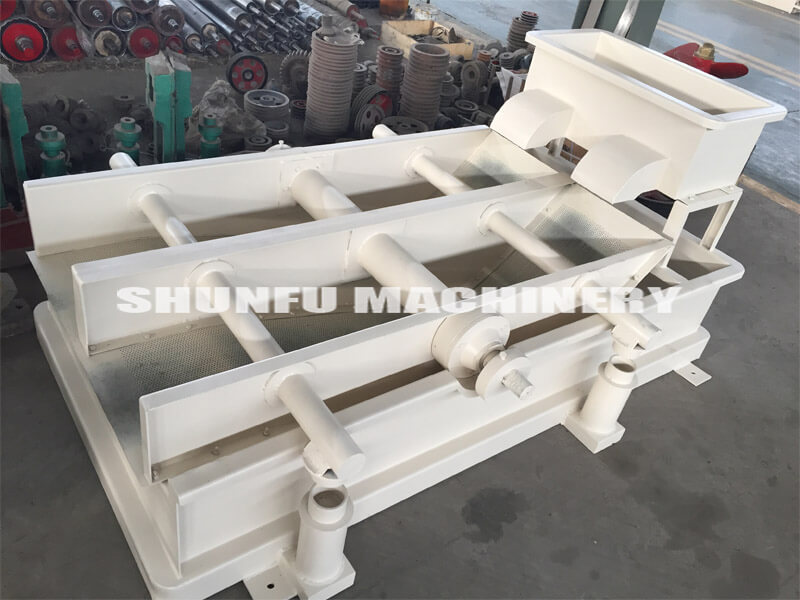

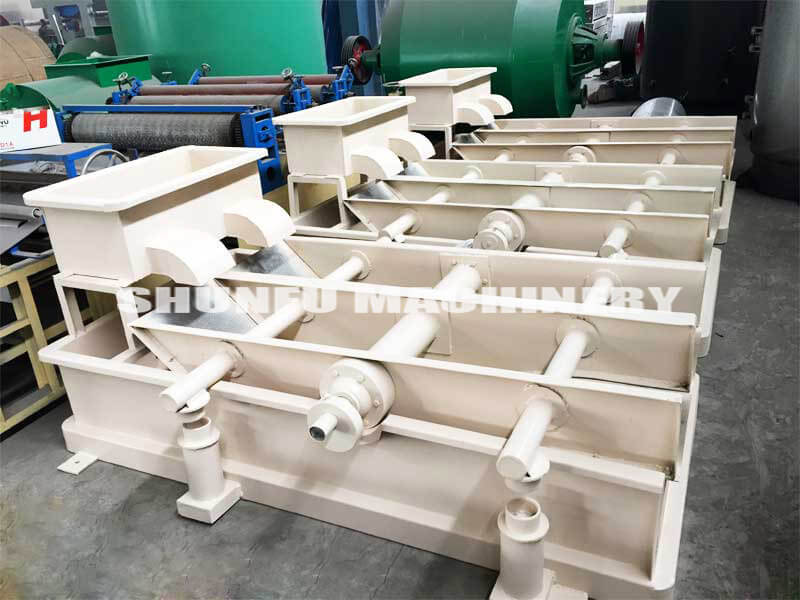

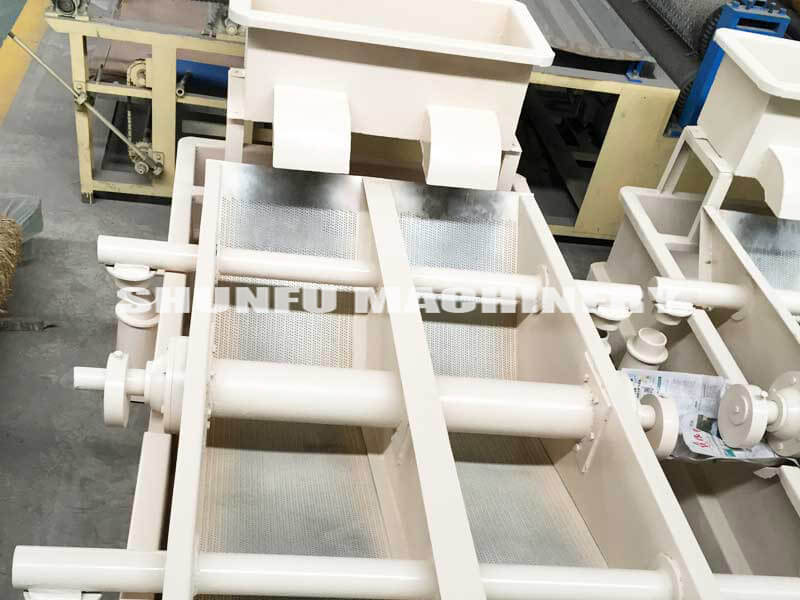

Vibrating screen is used for rough screening waste pulp, also screening end pulp of pressure screen, for slightly larger impurities in paper machinery.such as plastics, rubber, ethylene chlorine chemicals. The equipment has simple structure, large capacity of eliminating residue, ease of maintenance and operations, it includes hole screen and slot screen, hole screen is used for rough screening and slot screen is used for managing end pulp of pressure screen. It includes high frequency vibration screen and own cleaning vibration screen.
◆ Technical Parameter
Vibrating screen is used for rough screening waste pulp, also screening end pulp of pressure screen, for slightly larger impurities in paper machinery.such as plastics, rubber, ethylene chlorine chemicals. The equipment has simple structure, large capacity of eliminating residue, ease of maintenance and operations, it includes hole screen and slot screen, hole screen is used for rough screening and slot screen is used for managing end pulp of pressure screen. It includes high frequency vibration screen and own cleaning vibration screen.
◆ Technical Parameter
| Type | ZSK1 | ZSK2 | ZSK3 |
| Area of Screen (m2) | 1 | 2 | 3 |
| Product Capacity of Hole screen (t/d) | 7.5-25 | 12-50 | 25-75 |
| Product Capacity of Gap Screen (t/d) | 3.5-75 | 7-15 | 11-25 |
| Input Pulp Concentration of Hole screen (%) | 1.0-1.5 | ||
| Input Pulp Concentration of Gap Screen (%) | 0.5-0.8 | ||
| Motor power (Kw) | 2.2 | 3-7 | 4 |
◆ Main Function
The equipment is used for the pulp rough screen and reject screening of pressure screen, to dispose larger impurities, to dispose larger impurities such as plastics, rubber, vinyl chloride and other impurities. Simple structure, the great elimination capacity of slag, convenient operation and maintenance featuress.The equipment has hole screen plate and joint screen plate, of which hole screen plate is for coarse screen, joint screen plate is for the disposal of pressure screen reject in paper machinery
