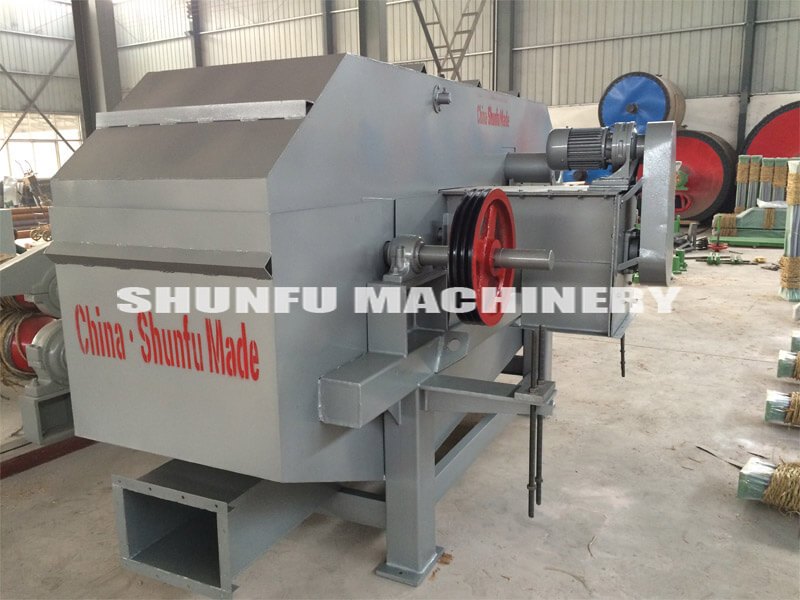

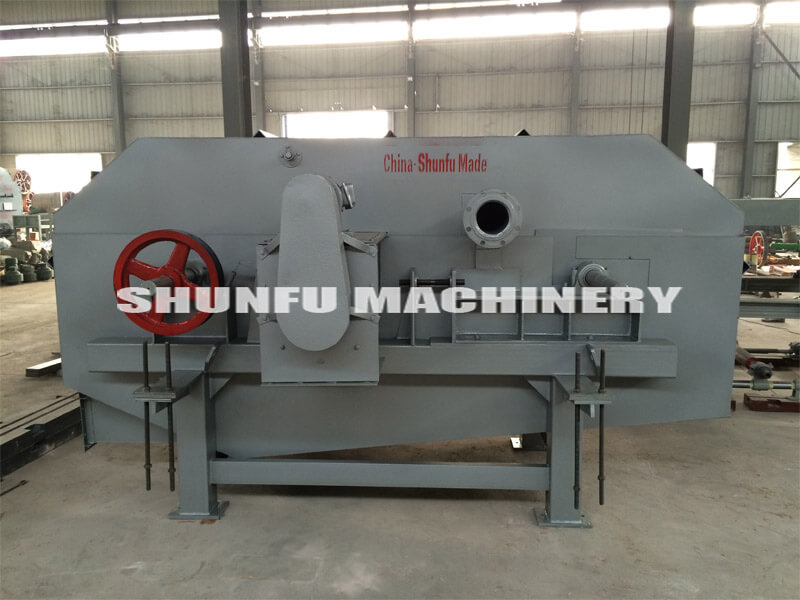

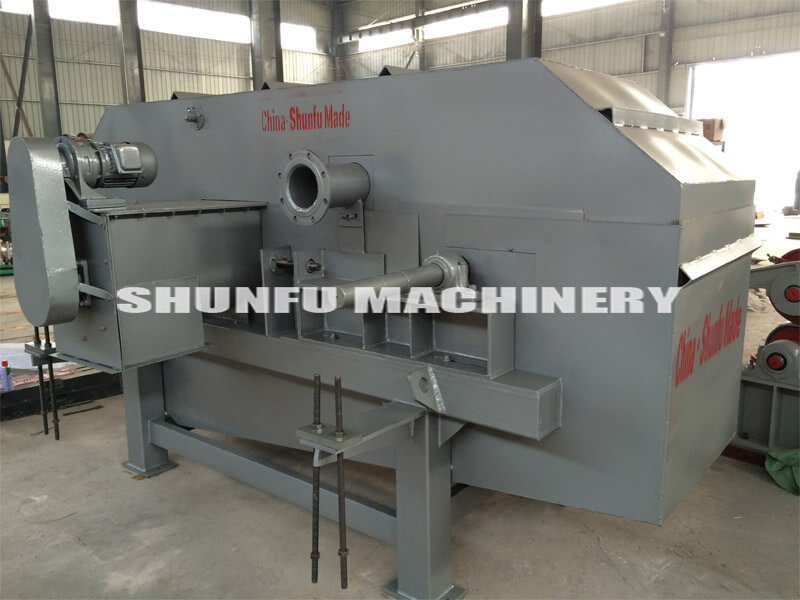

High Speed Pulp Washer
- Material:Stainless steel
- Control system:PLC System
- Feeding content:0.3-1%
- Application:Paper making pulp equipment
- Warranty:1 year
We are here to help:Easy ways to get the answers you need.
- Culture paper machine
-
- 2400mm Type Fourdrinier Multi-Dryer Newspaper Machine
- 2800mm Daily Capacity 40 Tons Fourdriner Culture Paper Machine
- 1575 Fourdrinier Cultural Paper Machine
- 1092 Type Capacity 3-4tons Writing Paper Machine
- 6-8tons culture paper machine
- 1092mm Fourdrinier Paper Making Machine
- 1092 Type Capacity 5tons Culture Paper Machine
- 787mm Type Culture Paper Machine
- 1575mm type culture paper making machine
- Specialty paper machine
-
- 1600A Model Kraft Paper Slitting Machine
- 1760mm Multi-Dryer Five Cylinder Mould Grey Cardboard Machine
- 1092mm Multi-Dryer Five Cylinder Mould Grey Cardboard Machine
- 2100mm Multi-Dryer Five Cylinder Mould Paperboard Machine
- 4 Heads CNC Spiral Paper Tube Machine
- 2 Heads CNC Spiral Paper Tube Machine
- Capacity 5-8 Per Day Paperboard Machine
HOT PRODUCT
Describe
◆ Overview
ZGX Ⅱ speed washer is the company on the basis of absorbing foreign advanced technology, research and innovation successfully developed a new type of pulp concentration and washing equipment. It has to waste paper pulp, especially high in various domestic waste paper deinking pulp washing efficiency, large capacity, low power consumption is a significant advantage, the device is a small footprint, simple operation, easy installation. Wash high degree of pulp, pulp only through a variety of equipment that is able to meet the requirements of the class pulp washing degrees, without further order of the creation of the pulp washing equipment. Is the deinking pulp manufacturers, chemical straw, wood pulp and pulp manufacturers the ideal equipment for washing concentrated.
◆ Use
The device for slurry ink particles, fillers and other fine impurities have a high removal efficiency can be widely used in various domestic waste newsprint recycled pulp, waste paper recycled pulp account books, scrap books and all kinds of recycled pulp paper office waste recycled pulp, concentrated washing and bleaching of chemical pulp bleaching before after slurry, etc..
◆ Main Specifications And Parameters
Model Parameter | DNT-Ⅰ | DNT-Ⅱ | DNT-Ⅲ | DNT-Ⅳ |
Into pulp concentration | 0.5—3 | |||
Output pulp concentration | 10—15% | |||
Capacity T/D | 15-20 | 30-40 | 50-60 | 60-80 |
Into pulp mouth diameter (mm) | 150 | 200 | 250 | 300 |
Output pulp mouth diameter(mm) | 600×250 | 700×250 | 800×250 | 900×250 |
White water output size(mm) | 547 | 1067 | 1499 | 1930 |
Power | Y200L2-6/11kw | Y225M-6/22kw | Y280S-6/30kw | Y280M-6/37kw |
Note: The product is not limited to the above specifications, when the filter width 100mm for each additional specifications.
